+6-
Sleeps 6
-
3 Slides
-
Walk-Thru Bath
-
36ft Long
-
19,322 lbs

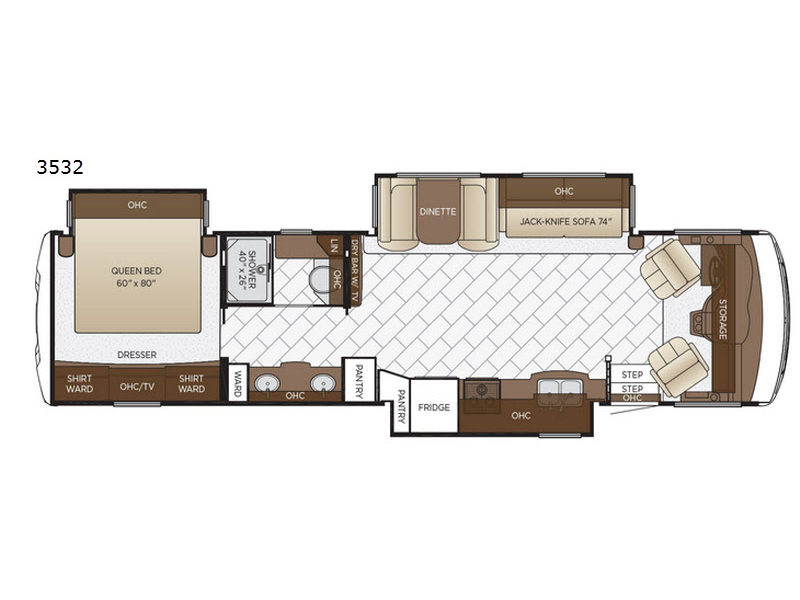

3532 Floorplan
Specifications
| Sleeps | 6 | Slides | 3 |
| Length | 35 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 8 in | Int Height | 6 ft 8 in |
| Hitch Weight | 5000 lbs | GVWR | 24000 lbs |
| Dry Weight | 19322 lbs | Cargo Capacity | 4668 lbs |
| Fresh Water Capacity | 75 gals | Grey Water Capacity | 60 gals |
| Black Water Capacity | 40 gals | Furnace BTU | 40000 btu |
| Fuel Type | Gas | Engine | Triton V10 |
| Chassis | Ford F-53 | Horsepower | 320 hp |
| Fuel Capacity | 80 gals | Wheelbase | 228 in |
| Available Beds | Queen | Torque | 457 ft-lb |
| Refrigerator Size | 8 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 3 | Shower Size | 40" x 26" |
| Number of Awnings | 1 | Axle Weight Front | 9000 lbs |
| Axle Weight Rear | 15500 lbs | LP Tank Capacity | 25 |
| Water Heater Capacity | 6 gal | AC BTU | 13500 btu |
| TV Info | LR LED TV, BR TV | Awning Info | Power |
| Gross Combined Weight | 30000 lbs | Shower Type | Standard |
| Electrical Service | 30 amp |
Description
Newmar Bay Star class A motor home 3532 highlights:
- Triple Slide Outs
- Walk-Through Bathroom
- 74" Jack Knife Sofa
- Overhead Storage
You will want your next road trip to extend just a little bit longer with this triple slide out 3532 Bay Star class A motor home. With plenty of comforts throughout this model it will not seem like you are camping, but rather enjoying your second home! You can easily bring along all of your necessary camping items and store them in the overhead cabinets. Enjoy visiting with family and friends at the 74" jack-knife sofa, and fixing your favorite meals is a breeze in this fully-equipped kitchen. The walk-through bathroom has a private toilet/shower area and across the hall you will find his/her sinks!
Get ready for any road trip with a Newmar Bay Star class A motor home! Along the exterior there is a Masterpiece full painted graphics with clearcoat finish plus a DuraShield protection on the front cap which is sure to turn heads as soon as you enter the campground! Inside each model you will find Calypso glazed Maple cabinet doors, solid surface counter tops in the bathroom and bedroom, plus Flexsteel deluxe leather sofa and front seats. Your trips are made easier with the 8 cu. ft. Norcold refrigerator and the 30" over-the-range microwave. You won't be lacking for entertainment with the Sony LED TV and DVD player in the living and bedroom area plus there is a dash radio/CD player. For luxury and convenience you will want a Bay Star class A motor home by Newmar! Come select your model today!
**SOME FEATURES MAY BE MISSING OR UNAVAILABLE ON USED RVS AND ARE SOLD AS IS.
Features
Standard Features (2018)
- Exterior Masterpiece™ Full Painted Graphics with Clearcoat Finish
- Dura Shield Protection on Front Cap
- Lighted Exterior Storage Compartments
- Automatic Step for Entrance Door
- Convex Exterior Mirrors with Defrost
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Undercoating
- Mud Flaps
- Hydraulic Leveling Jacks
- Exterior Kitchen*
Options
- Convex Exterior Mirrors with Defrost and Remote Control
- Rear Ladder
- Flag Pole Bracket
- Temporary Windshield Protection for Transport
- BriteTEK Roof with Walkable Deck
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, on 16" Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
Options
- Polar Pak R19 batten Insulation in Roof
Chassis
- Ford® F-53 Chassis 22,000 lb. on 30’-34' Floor Plans
- Ford® F-53 Chassis 24,000 lb. on 35' Floor Plans
- Cruise Control
- Tilt Steering Wheel
- Aluminum Wheels
- One Piece Tinted Windshield
- Frameless Single Pane Tinted Safety-Glass Windows
- Power Vent in Kitchen and Bathroom
- Skylight Above Shower
- Dometic® Weather Pro Side Awning with Aluminum Weather Shield
- Slideout Covers
Options
- Frameless Double-Pane Tinted Safety Glass Windows
- Rear Window in Bedroom*
- Fantastic Vent with Rain Sensor in Kitchen & Bathroom
- Bunk Windows*
Air Conditioning & Heating
- 13.5M Brisk® Central Air Conditioner
- Dash Heater and Air Conditioner
- Defrost Fans Built into Front Overhead
- Propane Gas Furnace with Ducted Heat
Options
- 15.0M Penguin, Heat Pump Air Conditioner*
- Two 13.5 Penguin Heat Pump A/C, 5.5 Onan Generator, 50 Amp Electrical Service with Energy Management System*
- Auxillary Heater in Bedroom
Electrical
- 4.0 kW Cummins Onan® Generator with Remote Switch and Automatic Changeover
- 30 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
- Two 12 Volt House Batteries
- Battery Disconnect Switch for House Battery
- 12 Volt Auxiliary Receptacle on Dashboard
- 45 Amp Converter
- Daytime Running Lights
- Emergency Engine Start Switch
- LED Ceiling Lights
- Manually Operated Hold-To-Run Slideout Switch
- Cable TV Connection
- 10 Watt Solar Panel to Charge Chassis Battery
- 1000 Watt Inverter Run to Drain Lift Pump & TV™s on 3403 & 3712 Floorplans
- Lights in Wardrobes
- USB Chargers at Driver/Passenger Seat Area
Options
- 1000 Watt Inverter Ran to TVs*
- 50 Amp Electrical Service*
- Solar Prep Rated for 1200 Watts with Six Gauge Wire from Roof to House Battery Compartment
Plumbing & Bath
- Demand Water System
- Sewage Holding Tank Rinse
- Water Heater Bypass System
- Dometic® 310 China Bowl Stool
- ABS Shower Surround with Shower Door
- Systems Monitor Panel
- Exterior Shower
Options
- Water Filter for Entire Unit
Cabinets & Furniture
- Calypso Glazed Maple Mitered Designer Cabinet Doors-Opt. Matte Finish
- Drawers with Full-Extension Guides
- Polished Solid Surface Countertop in Kitchen with Stainless Steel Sink
- Solid Surface Countertops in Bathroom and Bedroom
- Flexsteel® Ultralux Leather Sofa and Front Seats
- Lifts on Bed Top
- Smooth-Top Mattress
- Passenger Seat Work Station
- Manual Foot Rest on Passenger Seat
- Pullout Pantry Shelves*
- Concealed Hinges on Cabinet Doors
- Drop Down Bunk Bed Over Driver/Passenger Seats with Electric Latches and 32" TV in Front Overhead*
Options
- Astoria Glazed Maple Mitered Designer Cabinets-Opt. Matte Finish
- Sienna Glazed Maple Mitered Designer Cabinets-Opt. Matte Finish
- Combination Desk with Buffet Dinette Table, 2 Fixed & 2 Folding Chairs
- Combination Desk/Dinette with Free Standing Hidden Leaf Table, 2 Fixed & 2 Folding Chairs
- Buffet Dinette with Free Standing Table
- Buffet Dinette
- Free Standing Hidden Leaf Dinette Table, 2 Fixed & 2 Folding Chairs*
- Drop Down Bunk Bed Over Driver/Passenger Seats with Electric Release Latches*
- Plush Pillow Top Mattress
- Folding Cockpit Table
- Hide A Bed Sofa
- Off Door Side-Side Opening Hide-A-Bed Sofa*
- Off Door Side 74 Fold & Tumble Sofa with Air Mattress*
- Side Opening Hide-A-Bed Sofa*
- Six Way Power for Driver Seat
- 84" Hide-A-Bed Sofa*
- 87" Bunk Sofa*
Appliances
- Three-Burner Range with Oven
- 30" Over the Range Microwave
- Norcold® 8 Cf. Refrigerator
- Raised Panel Refer Door Insert Panel
- 6 gal. Gas/Electric Water Heater with Electronic Ignition
Options
- Frigidaire 10 Cf. Regrigerator with Dedicated 1000 Watt Pure Sine Inverter & 2 Extra Batteries
- Norcold 12 Cf. 4-Door Regrigerator with Icemaker
- Icemaker Added to Standard Norcold Refrigerator with Heated Water Line
- 30" Convection Microwave with 3 Burner Cooktop
- Fireplace in Living Area (Requires 50amp Service Option)*
- 110 Volt Heat Pads for Holding Tanks
- Icemaker Added to Standard Norcold Refrigerator
Interior
- Vinyl Ceiling Panels
- Decorative Wall Art
- Vinyl Floor in Kitchen, Living Area and Bathroom
- Carpeting in Bedroom and on Slideout floors
- Interior Assist Handle at Main Entrance Door
- Quilted Bedspread, Bed Scarf & Accent Pillow
- Inlayed Six Panel Design Interior Passenger Doors
- Auto Motion Manual Double Roller Shades on Windows Behind Driver/Passenger Area
- Auto Motion Power Shade at Windshield & Manual Shades at Driver & Passenger Side Windows
- Dash Panel Color Coordinated ABS
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
- Shoe Storage Located in Entrance Door Step Compartment
- Waste Basket in Kitchen Base
Options
- Vinyl Tile Floor in Place of Vinyl Floor
Audio, Video & Accessories
- Sony LED TV & DVD Player in Living and Bedroom Areas (TV sizes vary per floorplan)
- Dash Radio/CD Player with Harman/JBL 180 Watt Sound System
- Rearview Colored Monitor System with Audio
- Winegard Digital TV Antenna
- Satellite Dish Prep on Roof
- High Definition Component Wiring
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- Bluetooth Microphone for Sony Dash Radio
Options
- 32" LED TV in Front Overhead
- 32" LED TV in Exterior Storage Compartment*
- 32" LED TV Exterior TV Only*
- Blu-Ray Disc Players
- Side View Cameras Displayed onto Rear View Monitor Screen
- Sirius Radio Capability with Antenna (Does Not Include Monthly Subscription)
- Bose Solo 5 Sound Bar Sound System
- WiFi Ranger Skypro Pack Router
- Xite Dash Radio, 6 Monitor with Rand McNally Navigation
- Winegard Automactic Open Face Satellite Dish
- Winegard® Automatic Dome Satellite Dish
- Winegard in Motion Dome Satellite Dish
- Winegard Automatic Open Face Swm Satellite
- Winegard Cellular In Motion WiFi
- Winegard Cellular in Motion WiFi Prep
See us for a complete list of features & available options!
All standard features and specifications are subject to change.
