Floorplan - 2017 Starcraft Travel Star 229TB
-
-
-
-
-
1 of 7
+7-
Sleeps 10
-
U Shaped DinetteRear Bath
-
26ft Long
-
4,391 lbs

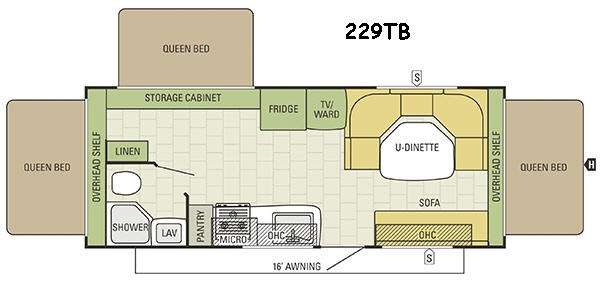

229TB Floorplan
229TB Floorplan
Specifications
Specifications
| Sleeps | 10 | Length | 25 ft 11 in |
| Ext Width | 8 ft | Ext Height | 10 ft 2 in |
| Int Height | 6 ft 6 in | Hitch Weight | 440 lbs |
| GVWR | 5450 lbs | Dry Weight | 4391 lbs |
| Cargo Capacity | 1335 lbs | Fresh Water Capacity | 23 gals |
| Grey Water Capacity | 31 gals | Black Water Capacity | 31 gals |
| Furnace BTU | 18000 btu | VIN | 1SABSHBL5H2JF5075 |
Description
Description
291264 291263
Step into this 229TB Starcraft Travel Star expandable and be amazed at how much space is found inside. Plus, with three expanding beds it sleeps 8-10!
As you step into the unit you will find a sofa immediately to your right with an overhead storage cabinet. You can choose a jack knife sofa option if you like. Across from the sofa is a large u-shaped dinette for comfortable dining, playing board games, or just hanging out. The dinette can be made into additional sleeping if needed by folding down the table.
There is front queen tent end bed as well as two more in the rear. One is directly out the back with the second one off the rear side. All queen tent end beds have overhead shelves for your things as you enter.
Tucked in the rear corner is a full bath complete with angled shower, toilet, and sink. There is a linen storage just outside the bathroom for all of your linens and toiletries.
The kitchen has everything you need to prepare the entire crew a great meal. There is a three burner range with a convenient microwave above it. You will also find a large sink making cleanup a breeze, and a refrigerator opposite the kitchen sink.
There is a wardrobe storage cabinet next to the dinette which has been prepped above for a TV. You will also find plenty of exterior storage in the front below the sofa and u-shaped dinette, plus so much more!
*Some features may be missing or unavailable on used or pre owned RVs and are sold as is.
N/A
Features
Features
Standard Features (2017)
Expandables
Construction Equipment
- 78" ceiling height
- Cable support bunk end system (1,100-lb. capacity)
- Corrosion-resistant frame
- Crowned truss roof rafters on 16" Centers with 3/8" WALK ON Decking
- Fiberglass Roof Insulation
- One-piece seamless rubber roof material
- Screwed-stile hardwood cabinetry
- TUFFSHELL CONSTRUCTION Featuring:
- Vacuum-Bonded Laminated Aluminum Framed Sidewalls (R-9)
- Vacuum-Bonded Laminated Aluminum Framed Endwalls (R-9)
- Vacuum-Bonded Laminated Aluminum Framed Slideout Walls and Roof (R-9)
- Magnum Roof System – 50% Stronger
Standard Exterior Equipment
- 2-5/16" hitch coupler
- 6-gal. gas DSI water heater
- 12V demand water pump
- 20-lb. propane bottles with auto-changeover (2)
- 120V G.F.C.I.-protected exterior receptacle
- Aerodynamic front profile
- Amber patio light with inside switch
- AquaShield Aqualon water-repellent sectionalized tent with 7-year warranty
- Bumper with drain hose carrier and end caps
- Bunk-end tents permanently attached to bed base
- Digital antenna (TV/FM)
- E-Z Lube axles
- Fresh water fill and hookup connection
- Front diamond plate
- Lighted entrance step
- Molded rain guttering with extended drip spouts
- Painted bottom radius skirting
- Prep for bumper-mount grill
- Radial tires
- Self-supporting lockable bunk ends (no poles required)
- Spare tire with carrier
- Solar prep
Standard Interior Equipment
- 18,000-BTU furnace with auto-ignition
- ABS gas bottle cover with access hatch to propane valves
- Ball bearing drawer guides, 50-lb. capacity with full-drawer extension
- Bathroom exhaust fan
- Cable and satellite TV prepped
- High-density foam cushions
- Honey Glazed cherry wood cabinetry
- LED light in bunk area
- Pleated shades
- Privacy curtains for bunks
- Queen bed-sized quilted bunk mats – Denver Mattress
- Stereo and 2 speakers
- Systems monitor panel
- Tub/shower skylight
- Vanity mirror in bathroom
- Water heater bypass system
- Winterization kit
- Docking station w/outside sprayer
Standard Kitchen
- 3-burner range
- Flush-mounted refrigerator
- Large kitchen window (select models)
- Oversized kitchen sink with sink cover (select models)
- Range hood with light and exhaust fan
- Residential-style “high rise” faucet with pull-out sprayer
Customer Convenience Package (Mandatory)
- 13,500 BTU A/C
- ABS propane bottle cover
- Marine-grade exterior speakers (2)
- Microwave with carousel
- Spare tire with carrier
- Stabilizer jacks (4)
- Stereo AM/FM with CD/DVD/USB (12V)
- Water heater bypass system
- 8 cu. ft. refrigerator
- Electric awning w/LED lighting
- Kitchen backsplash
- Large grab handle
Show Stopper Package (Mandatory)
- Denver Mattress bunk mat(s)
- Aluminum rims
- EZ-Store detachable cord
- Docking station with outside sprayer & black tank flush
- Solar prep
- Foot flush toilet
- Jackknife with pillows (N/A 187TB)
Select Package (Optional)
- Porcelain toilet with foot flush
- Wood batten ceiling trim
- Bottom accent crown on kitchen cabinets
- Tub surround
- Folding grab handle
- 2 storage doors for dinette
Options
- Medium LED TV
- Bumper-mount grill
- Oven
- Heated bunk matts
- Climate Package: Insulated, heated and enclosed underbelly; foil insulation in roof
Travel Trailers
Standard Construction Features
- 5/8" tongue-and-groove plywood floor
- 5" Crowned truss roof rafters on 16" Centers with 3/8" WALK ON Decking
- 6' interior slideout height
- 7' interior ceiling height
- Fiberglass Roof Insulation
- Screwed-stile hardwood cabinetry
- I-Class cambered structural-steel I-beam frame
- In-floor ducted heat
- One-piece seamless rubber roof material
- R-14 insulation in roof and floor
- TUFFSHELL CONSTRUCTION Featuring:
- Vacuum-Bonded Laminated Aluminum Framed Sidewalls (R-9)
- Vacuum-Bonded Laminated Aluminum Framed Endwalls (R-9)
- Vacuum-Bonded Laminated Aluminum Framed Slideout Walls and Roof (R-9)
- Magnum Roof System – 50% Stronger
Standard Exterior Equipment
- 6-gal. gas/electric DSI water heater
- 10-gal gas/electric DSI water heater (286RLWS, 285FB)
- 30-lb. propane bottles w/cover (2)
- 30" x 72" radius-cornered main entrance door with screen door
- 120V G.F.C.I.-protected exterior receptacle
- Bumper with drain hose carrier and end caps
- Cable and satellite TV prep
- Digital antenna (TV/FM)
- E-Z Lube axles
- Fiberglass front cap
- Large folding grab handle at entry door
- Nev-R-Adjust electric brakes
- Outside refrigerator (select models)
- Outside kitchen with bumper-mount grill, refrigerator and sink (309BHS, 335RLK)
- Outside TV prep
- Patio awning
- Prep for bumper-mount grill
- Propane bottle cover made of molded ABS
- Radial tires
- Stabilizer jacks (4)
- StarMAXX pass-through storage system: TPO composite flooring, dual tie down tracks, battery disconnect switch and ToyLok
- Step light at entry door
- Tinted safety-glass windows
- Water system winterization kit
- Docking station w/outside sprayer & black tank flush
- Wireless back-up camera system prep
Standard Interior Equipment
- 6.5” interior speakers
- 21” round skylight with LED lighting in living room/kitchen
- A/C Chillgrille
- Auto-ignition furnace with wall thermostat
- Ball-bearing drawer guides, 50-lb. capacity with full-drawer extension
- Command Center with centrally-located switches
- Decorative lighting package
- Glass shower doors
- Honey glazed cherry wood cabinetry
- Marine-grade table leg and pedestal base
- Multi-Media Sound System AM/FM/CD stereo
- Overhead cabinetry above sofa in slideout (select models)
- Pleated shades
- Mattress – queen (king-sized in 314RESA)
- Porcelain toilet with foot flush
- Ultra plush bunk mats – Denver Mattress
- Radius shower (select models)
- Sliding pocket doors in front bedroom (select models)
- Dehco stain resistant carpet
- Sleeper sofa
Kitchen
- Deep storage drawers under booth dinette seat (2)
- Double drawer with integrated silverware dividers
- Extra large picture window at dinette
- Flush-mount refrigerator with black panel inserts
- Integrated trash can storage (select models)
- Kitchen back splash
- Pots and pans drawer below oven (select models)
- Range hood with light and exhaust fan
- Residential-style high-rise faucet with pull-out sprayer
- Solid-surface kitchen countertops with under-mounted sink
- Solid-surface sink covers
Fifth Wheels
Construction Equipment
- Gel Coated Fiberglass Exterior
- 102” Wide Exterior = 6” wider hallways on the inside
- Drop-frame front basement storage area
- TUFFSHELL CONSTRUCTION Featuring:
- Vacuum-Bonded Laminated Aluminum Framed Sidewalls (R-9)
- Vacuum-Bonded Laminated Aluminum Framed Endwalls (R-9)
- Vacuum-Bonded Laminated Aluminum Framed Slideout Walls and Roof (R-9)
- Magnum Roof System – 50% Stronger
- 5" arched truss rafters on 16" Centers with 3/8" WALK ON Decking
- Fiberglass Roof Insulation
- 5/8” Tongue-and-Groove Plywood Floor Decking
- 6' interior slideout height
- Screwed-stile hardwood cabinetry
- I-Class cambered structural-steel I-beam frame
- In-floor ducted heat
- One-piece seamless rubber roof material
Exterior Equipment
- 10-gal. gas/electric DSI water heater
- 20 Gal./Hr. Quick Recovery Mode for Water Heater
- 30-lb. propane bottles (2)
- 30" x 72" radius-cornered main entrance door with screen door
- 120V G.F.C.I.-protected exterior receptacle
- Adjustable axle hangers
- Battery disconnect switch
- Bumper with drain hose carrier and end caps
- Cable and satellite TV prep
- Digital Compatible Roof Mounted Antenna (TV/FM)
- EASY TURN Aerodynamic Front Fiberglass Cap
- E-Z Lube axles
- Large folding grab handle at entry door
- Nev-R-Adjust electric brakes
- Outside kitchen with bumper-mount grill and refrigerator (288BHS, 337BHS)
- Outside TV prep
- Patio awning
- Prep for bumper-mount grill
- Radial tires
- Stabilizer jacks (2)
- Step light at entry door
- Tinted safety-glass windows
- Universal Docking Center Featuring:
- Black Tank Flush kit
- Outside Shower with Hot and Cold water
- Simple Water Heater By-Pass Switch
- City Water Connection
- Water system winterization kit
- Wireless Back-up Camera Prep
Interior Equipment
- 21” round skylight with LED lighting in living room/kitchen
- A/C Chillgrille
- Auto-ignition furnace with wall thermostat
- Ball-bearing drawer guides, 50-lb. capacity with full-drawer extension
- Command Center with centrally-located switches
- Decorative lighting package
- Glass shower doors
- Honey glazed cherry wood cabinetry
- Marine-grade table leg and pedestal base
- Overhead cabinetry above sofa in slideout (select models)
- Oversized LED TV
- Pleated shades
- Mattress – queen
- Porcelain toilet with foot flush
- Ultra-plush bunk mats
- Radius shower (select models)
- Sliding pocket doors in front bedroom (select models)
- Dehco stain resistant carpet
- Sleeper sofa
Kitchen Equipment
- Deep-storage drawers under booth dinette seat (2)
- Double drawer with integrated silverware dividers
- Extra large picture window at dinette
- Flush-mount refrigerator with black panel inserts
- Integrated trash can storage (select models)
- Kitchen backsplash
- Pots and pans drawer below oven (select models)
- Range hood with light and exhaust fan
- Residential-style “high rise” faucet with pull-out sprayer
Options
Customer Convenience Package (Mandatory)
- 3-burner range with 9,000-BTU SuperBurner and piezo igniter
- 13,500 or 15,000-BTU A/C with wall thermostat and louvered directional ceiling vents
- Docking station w/outside sprayer & black tank flush
- Microwave
- Outside speakers (2)
- Oversized 21" oven
- Roof ladder
- Security lights (2)
- Tub surround
- Water heater bypass system
- 8 cu. ft. refrigerator
- Solid surface countertops w/sink covers & pop-up USB and electrical receptacle
- Electric awning w/LED lighting kit
- Large LED TV
- CD/DVD with Bluetooth
- XTend-A-Bed (on 74” beds)
- Mirrored wardrobe doors
- Decorative lights
- Wallpaper border in living room
- Kitchen backsplash
- Headboard
- Bedspread
Show Stopper Package (Mandatory) TT
- Electric tongue jack
- LED accent lighting under kitchen countertop area
- Aluminum rims
- Ez-Store detachable cord
- 21” round skylight w/LED lighting in kitchen/living room
- Spare tire with carrier
- Bottom accent crown on kitchen cabinets
- Wireless back up camera prep
- Solar prep
- Sleeper sofa with pillows
Show Stopper Package (Mandatory) FW
- LED accent lighting under kitchen countertop area
- Aluminum rims
- EZ-Store detachable cord
- 21” round skylight w/LED light
- Spare tire with carrier
- Bottom accent crown on kitchen cabinets
- Wireless back up camera prep
- Solar prep
- Sleeper sofa with pillows
Galaxy Black Pearl Edition (Optional) TT
- Frameless windows
- Front and rear electric stabilizer jacks
- Painted copper/black front cap
- Cream colored hi-gloss gel-coated fiberglass sidewalls & rear wall
- Upgraded graphics
- Tankless water heater
- MCD night roller shades
- Wood accent window trim
- Wood accent ceiling trim
- Denver mattress pillow top
- Upgraded bedspread with shams
Galaxy Black Pearl Package (Optional) FW
- Rear electric stabilizer jacks
- Painted copper/black front cap
- Cream colored hi-gloss gel-coated fiberglass sidewalls & rear wall
- Frameless windows
- Upgraded graphics
- Tankless water heater
- MCD night roller shades
- Wood accent window trim
- Wood accent ceiling trim
- Denver mattress pillow top mattress
- Upgraded bedspread with shams
Options (TT)
- 12 cu. ft. refrigerator ILO 8 cu. ft.(286RLWS, 314RESA, 324RLTS, 335RLK)
- Medium LED TV in bedroom with inside/outside bracket
- 50-amp service with 2nd A/C prep
- Bumper-mount grill (std 309BHS, 335RLK)
- Climate Package: Insulated, heated and enclosed underbelly; foil insulation in roof
- Fireplace (324RLTS)
- Free-standing table with hidden leaf and four chairs (285FB, 286RLWS, 314RESA, 324RLTS, 335RLK)
- Hide-a-bed sofa – Tri-fold design (n/a 274RKS, 299BHU)
- Recliner chairs (2) in lieu of swivel rocker (286RLWS, 314RESA, 324RLTS)
- Second 13,500-BTU A/C (requires 50 AMP electrical service)
- Thermal pane windows
- Thermal pane windows – frameless with Galaxy Package
- Wireless back-up camera system
- Raised panel hardwood cabinetry in kitchen/living room & hardwood refrigerator inserts
- Fan-Tastic fan with vent cover in kitchen/ living room
Options (FW)
- Medium LED TV in bedroom with inside/outside bracket
- 50-amp service with 2nd A/C prep
- Climate Package: Insulated, heated and enclosed underbelly; foil insulation in roof
- Bumper-mount grill (std 288BHS, 337BHS)
- Cargo Accessory Receiver
- Fireplace
- Free-standing table with hidden leaf and four chairs
- Trifold Hide-a-bed sofa ILO sleeper sofa (N/A 337BHS)
- Recliner chairs (2) in lieu of swivel rocker (276RKS & 305RLT)
- Second 13,500 BTU A/C (requires 50-amp service)
- Slide-out awnings
- Thermal pane windows
- Thermal pane windows – frameless with Galaxy Pkg
- Wireless Back-up Camera System
- Fantastic fan with vent cover in kitchen/living room
- Raised panel hardwood cabinetry in kitchen/living room & hardwood refrigerator inserts
- 12 cu. ft. refrigerator (n/a 288BH)
- Rota Flex pin box
- 12 volt heat pads
- Trifold Hide-A-Bed sofa ILO rear dinette (337BHS)
- Trifold Hide-A-Bed sofa ILO theater seating (337BHS)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
Favorite RVs
Save your favorite RVs as you browse. Begin with this one!
What Other Customers Are Saying
We are here to help!
Loading
Summit RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @844-216-4317 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
