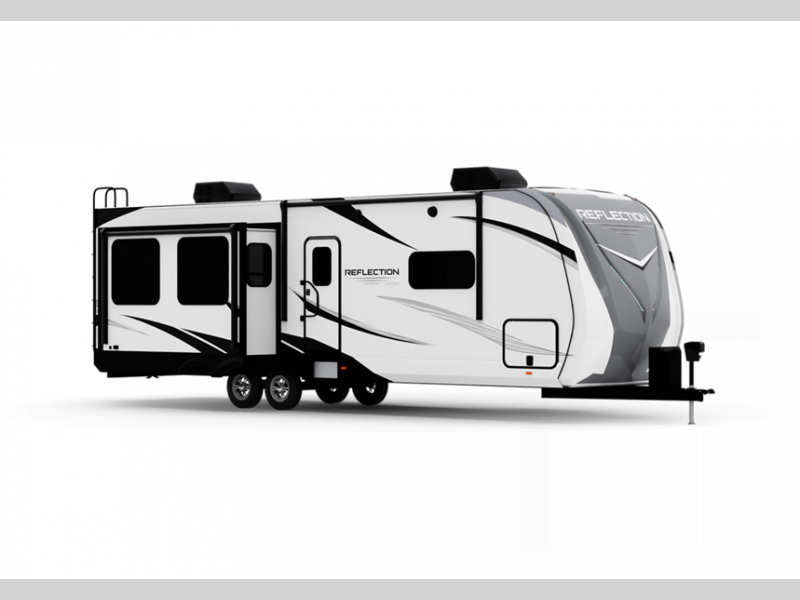

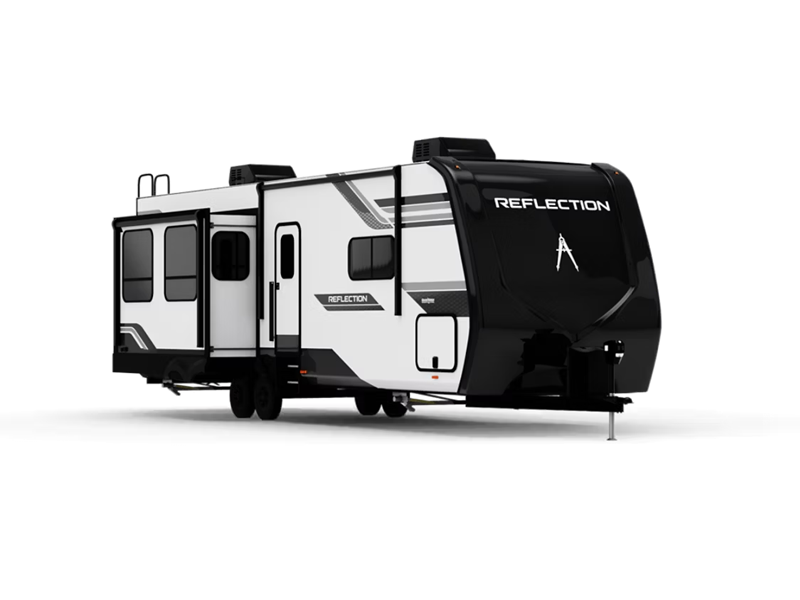

Grand Design Reflection Travel Trailer

Previous
Next
1 of 31

Grand Design is celebrating luxury, value, and towability with their Reflection fifth wheels and travel trailers. The gel coated fiberglass exterior and aerodynamic front cap with maximum turn radius will turn heads on the road and at the camp site.



Each model includes the Arctic 4-Seasons package allowing you to travel anytime you like, the One Touch auto leveling system making setting up easy, the aluminum entry steps that will not rust or bind, and the unobstructed pass-through compartment allowing you to pack larger items.  The LED lights with motion sensors in key areas, the ductless flooring, and the gourmet kitchen with solid surface countertops and a deep, undermount kitchen sink will seal the deal.  Come in and select your very own Reflection fifth wheel or travel trailer by Grand Design and enjoy your next camping experience!

  • Reflection 285BHTS

    Reflection 285BHTS Floorplan Image

    Grand Design Reflection 285BHTS travel trailer highlights: Bunkhouse U-Shaped ... more about Reflection 285BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 10
    Slides 1
    Length 35 ft 7 in
    Ext Height 11 ft 6 in
    Hitch Weight 793 lbs
    Gross Weight 9495 lbs
    Dry Weight 7628 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 43 gals
    Furnace BTU 35000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 40" HD LED
    Awning Info 21' One-Touch Electric with LED Light
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 287RLTS

    Reflection 287RLTS Floorplan Image

    Grand Design Reflection travel trailer 287RLTS highlights: Shower w/Skylight ... more about Reflection 287RLTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Slides 1
    Length 32 ft 7 in
    Ext Width 8 ft
    Ext Height 11 ft 6 in
    Int Height 0 ft
    Interior Color Espresso
    Hitch Weight 727 lbs
    Gross Weight 9495 lbs
    Dry Weight 7224 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 43 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Size 12 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    Cargo Deck Size 0 ft
    TV Info LR 40" LED
    Awning Info 21' Electric w/LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 297RSTS

    Reflection 297RSTS Floorplan Image

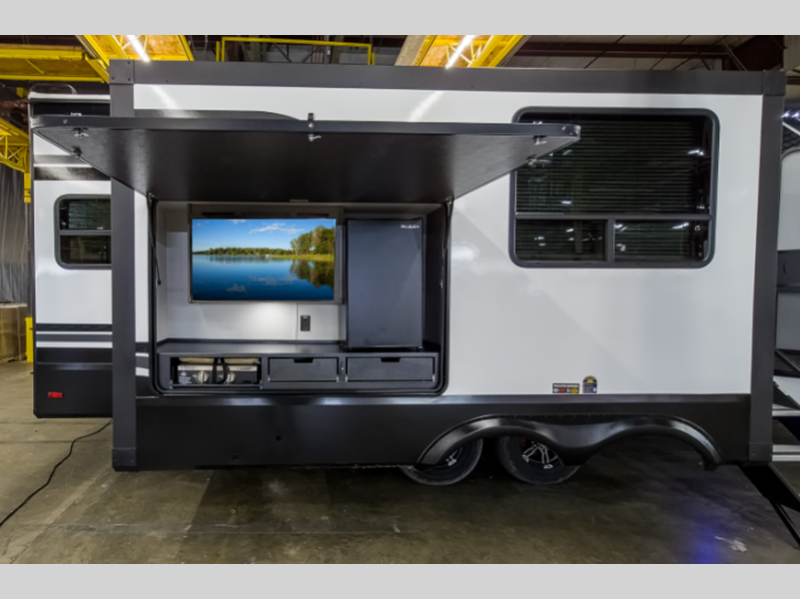

    Grand Design Reflection 297RSTS travel trailer highlights: Outside Kitchen & TV ... more about Reflection 297RSTS

    Specifications

    Sleeps 5
    Slides 2
    Length 33 ft 11 in
    Ext Height 11 ft 6 in
    Hitch Weight 795 lbs
    Gross Weight 9995 lbs
    Dry Weight 7895 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 43 gals
    Furnace BTU 40000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 40" HD LED, Ext. TV
    Awning Info 21' One-Touch Electric with LED Light
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 312BHTS

    Reflection 312BHTS Floorplan Image

    Grand Design Reflection 312BHTS travel trailer highlights: Bunkhouse Theatre ... more about Reflection 312BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 37 ft 4 in
    Ext Height 11 ft 6 in
    Hitch Weight 955 lbs
    Gross Weight 10995 lbs
    Dry Weight 8991 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 43 gals
    Furnace BTU 40000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 12 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 40" HD LED
    Awning Info 21' One-Touch Electric with LED Light
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 315RLTS

    Reflection 315RLTS Floorplan Image

    Grand Design Reflection 315RLTS travel trailer highlights: Tri-Fold Sofa Theatre ... more about Reflection 315RLTS

    Specifications

    Sleeps 6
    Slides 3
    Length 37 ft 11 in
    Ext Height 11 ft 6 in
    Hitch Weight 1065 lbs
    Gross Weight 10995 lbs
    Dry Weight 8994 lbs
    Fresh Water Capacity 60 gals
    Grey Water Capacity 118 gals
    Black Water Capacity 43 gals
    Furnace BTU 40000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 12 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36" in
    Number of Awnings 2
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 6 gal.
    AC BTU 15000 btu
    TV Info LR 40" HD LED
    Awning Info 13' One-Touch Electric with LED Light
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

Reflection Features:

Standard Features (2019)



Exterior

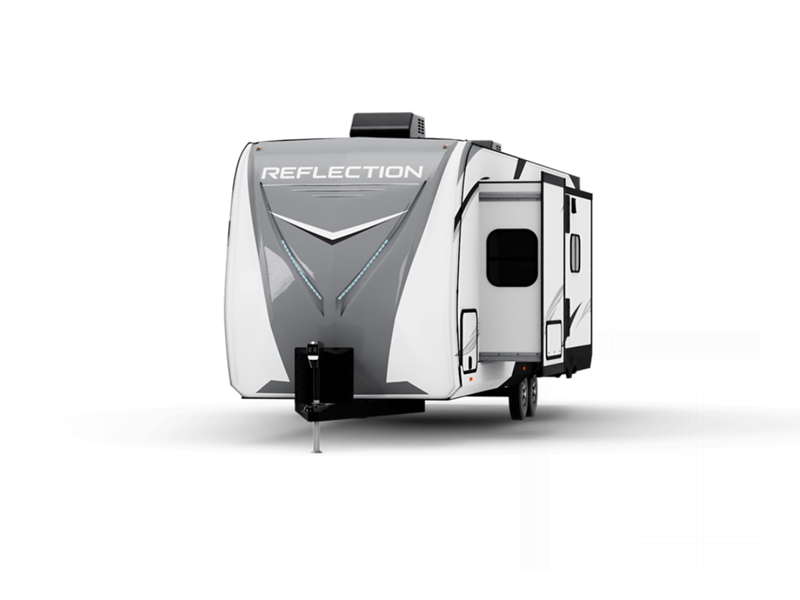

  • Aerodynamic Front Cap with Max Turn Radius
  • Marine Grade LED Hitch Light  (FW)
  • LED "Night Lights" Under Bedroom Slide (FW)
  • Rubberized Suspension Equalizer (FW)
  • Aluminum Wheels with E-Rated Tires
  • 80% Tint Radius Safety Glass Windows
  • Battery Kill Switch in Pass Thru Storage Area
  • Extended Pin Box (FW)
  • 30# LP Bottles (2)
  • 30" Radius Entry Door
  • Outside Speakers
  • Outside Shower
  • Factory Installed Roof Ladder
  • Under Carriage Spare Tire and Carrier
  • High-Capacity Water Pump with Interior and Exterior Switch
  • Extra Large 1 1/2" Fresh Water Drain Valve
  • Integrated Front Cap LED Lights (TT)

Interior

  • Hand Rubbed Maple Cabinet Doors
  • Solid Hardwood Drawer Fronts
  • Louvered Tread Steps to Bedroom (FW)
  • Solid Core Cabinet Stiles
  • Pre-drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Tri-Fold Hide-A-Bed Sofa (Model Specific)
  • Large Panoramic Slide Room Windows
  • Premium Congoleum Flooring
  • Ductless Flooring Throughout Living Area
  • Residential Style Window Treatment
  • LED Lighting Throughout with Motion Sensors (Key Areas)
  • Pleated Night Shade Window Covering (TT)
  • Roller Shade Window Covering (Night Shades 28BH and 29RS) (FW)

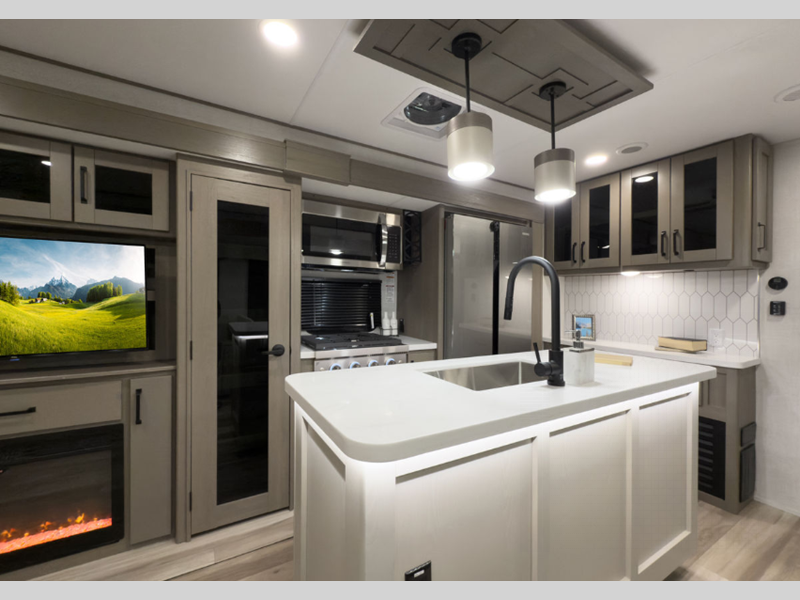

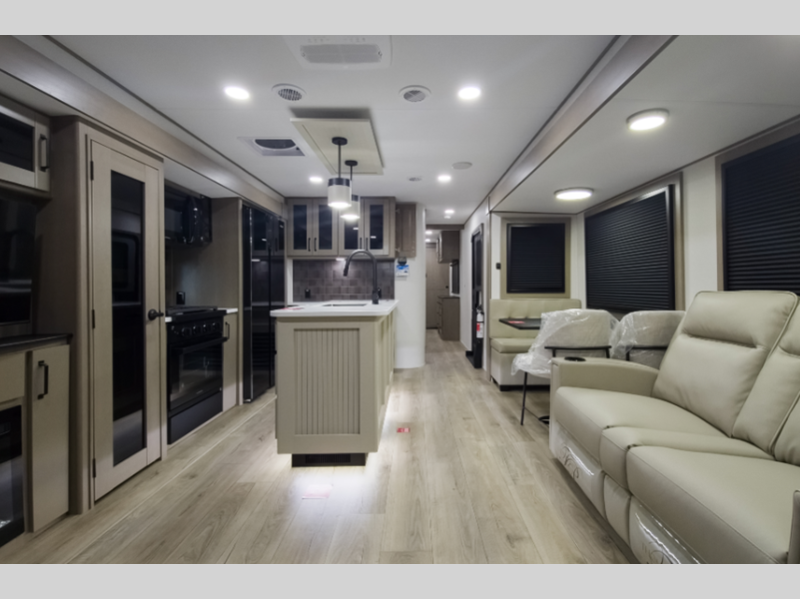

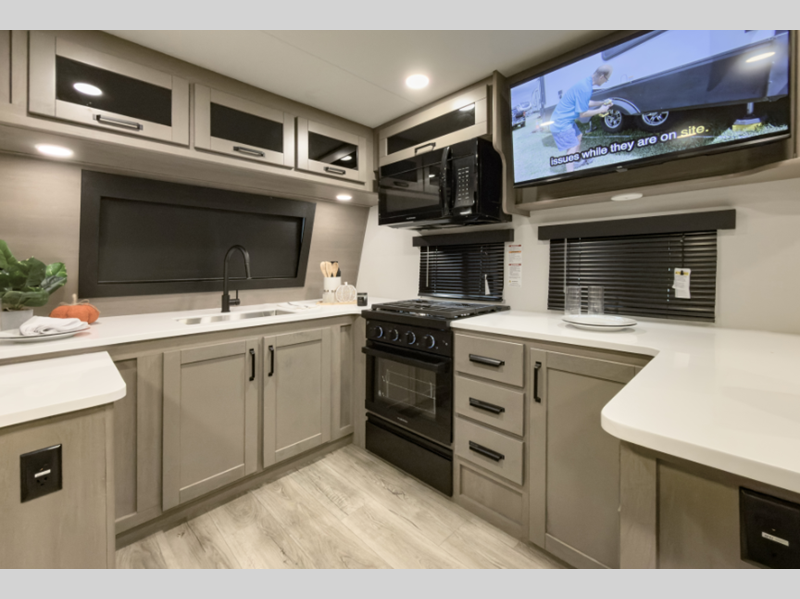

Kitchen

  • Gunstock Fixtures and Hardware
  • Deep, Undermount Kitchen Sink
  • Hardwood Galley Slide Trim Moldings and End Caps
  • Hardwood Panel Refrigerator Fronts

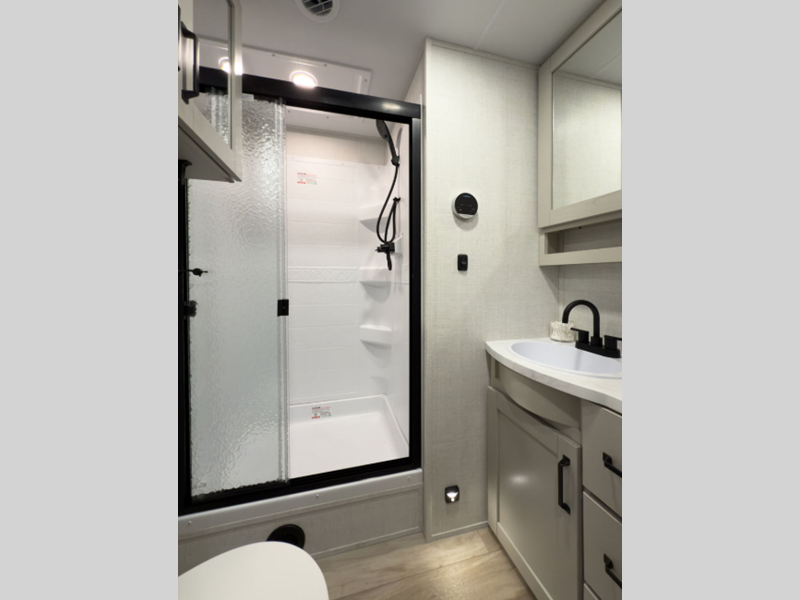

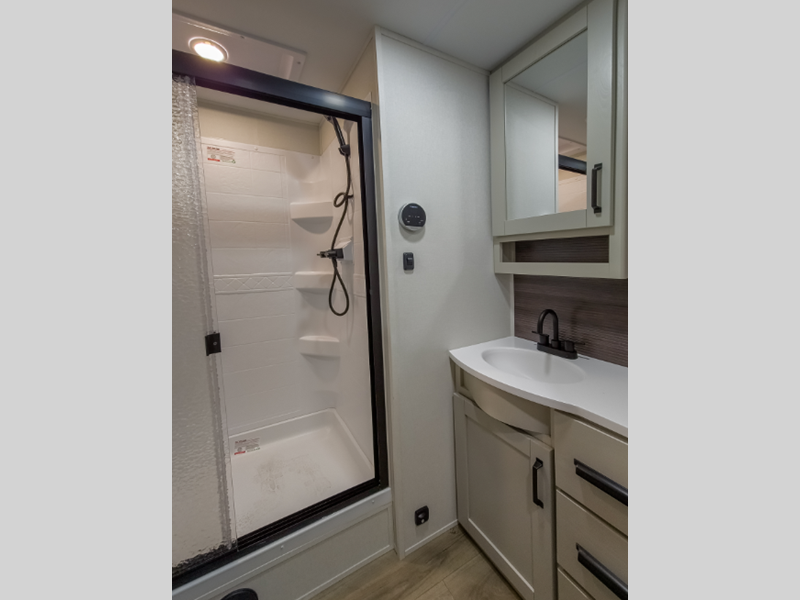

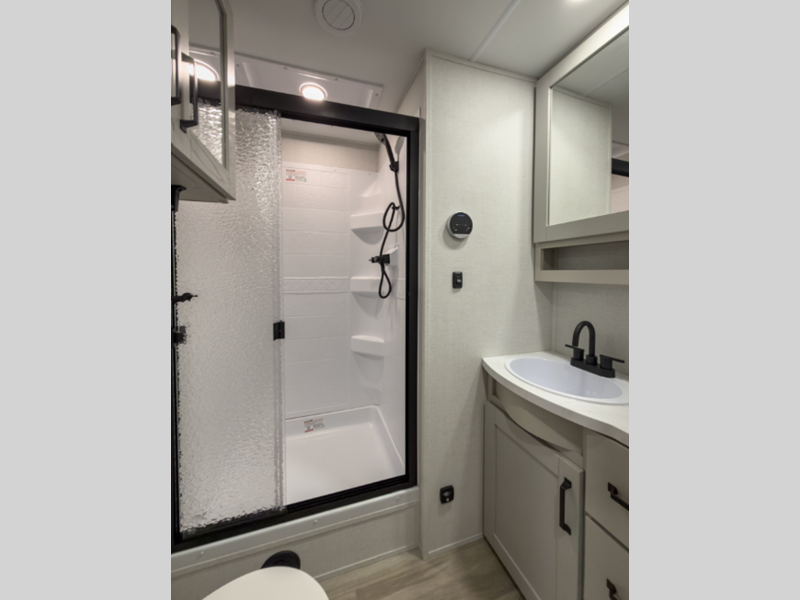

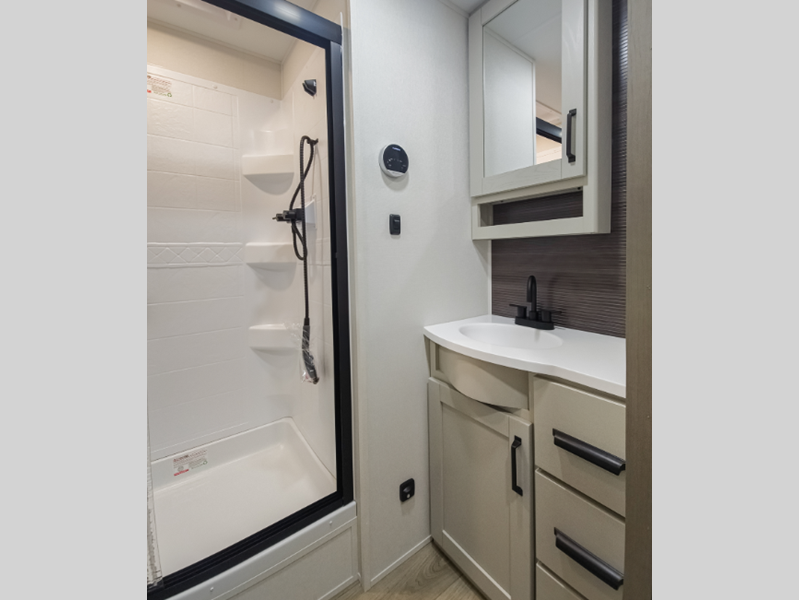

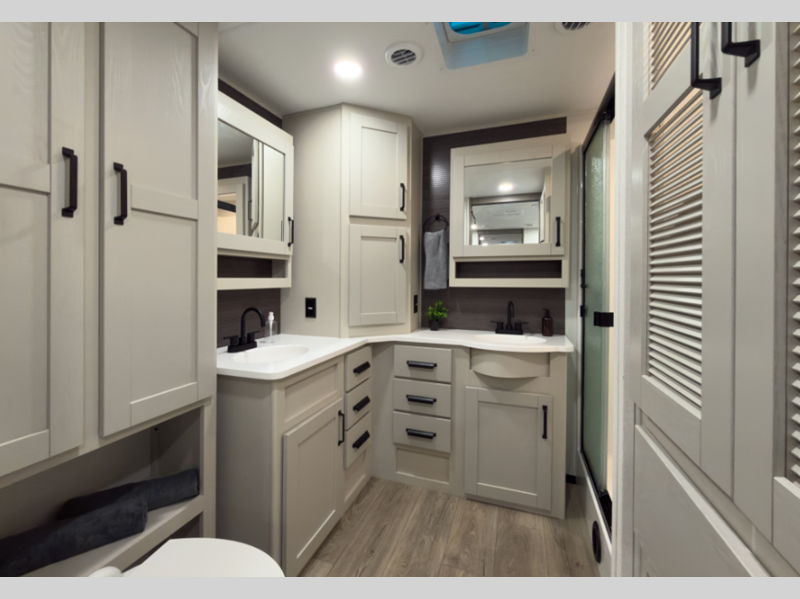

Bathroom

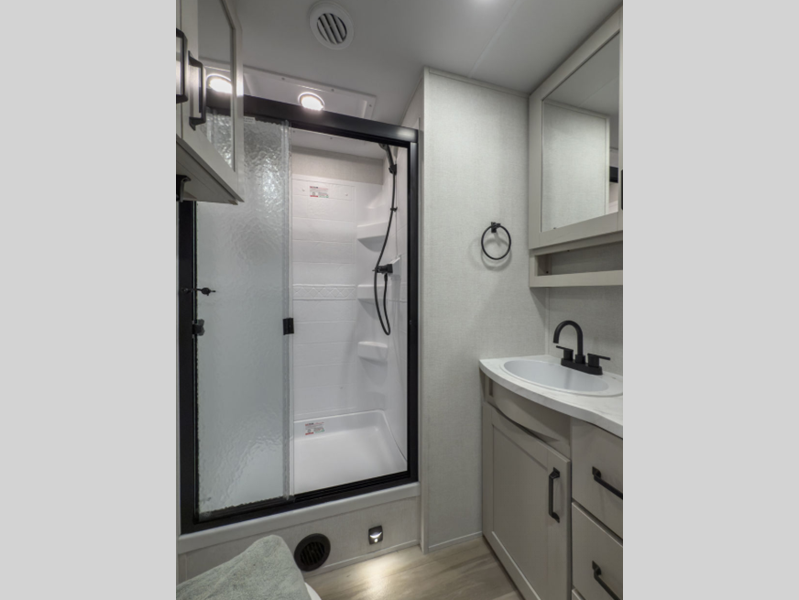

  • Spacious Shower with Glass Door
  • Wide View Skylight Over Shower
  • Heat Duct and A/C Vents in Bathroom
  • Power Vent Fan
  • Extra Large Lav Top with Stainless Steel Sink
  • Large Medicine Cabinet with Mirror

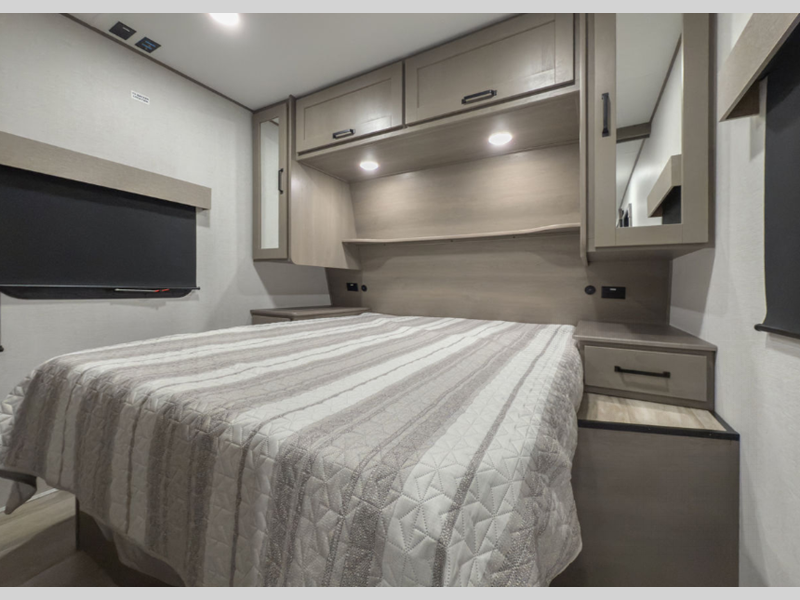

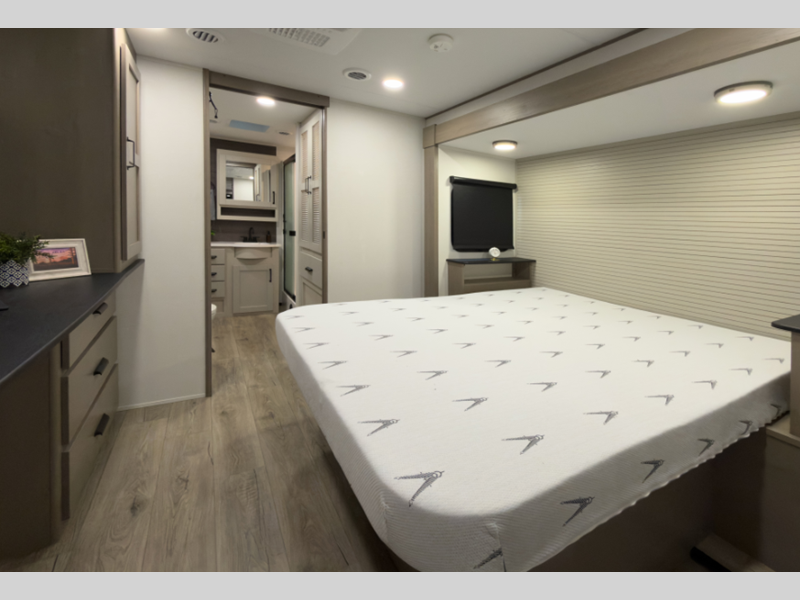

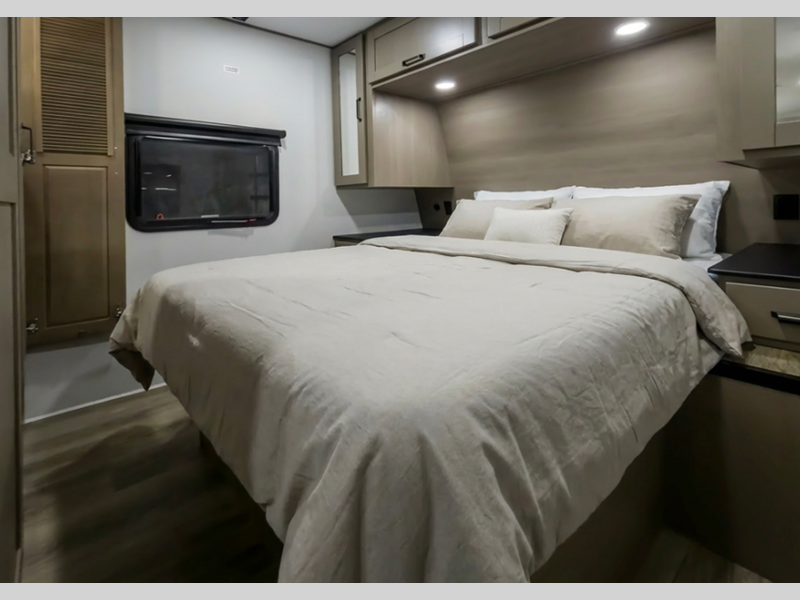

Bedroom

  • King Size Wardrobe
  • Pillowtop Mattress
  • Oversized Underbed Storage
  • Residential Bedspread
  • Bedroom Heat Registers
  • Closeable A/C Vents
  • TV and Cable Prep

Construction

  • Gel Coated Fiberglass Exterior (TT)
  • Gel Coated Ivory Fiberglass Exterior (FW)
  • Residential 5" Truss Rafters (16" O.C.)
  • Walk On Roof Decking
  • Fiberglass and Radiant Foil Roof and Front Cap Insulation
  • One-Piece TPO Roof Membrane with 12-Year Warranty
  • Easy Access Low Point Drain Valves
  • Laminated Aluminum Framed Rear Wall (R-9)
  • Laminated Aluminum Framed Side Walls (R-9)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
  • Aluminum Framed Main Floor (R-30*)
  • Residential Wood Framed Roof (R-40*)
  • Aerodynamic Front Cap with Max Turn Radius
  • Marine Grade LED Hitch Light (TT)

Ultimate Power Package (Mandatory)

  • One-Touch Electric Awning with LED Light
  • One-Touch Auto Leveling (FW)
  • Power Stabilizer Jacks (TT)
  • HDMI/AM/FM/CD/DVD Bluetooth Stereo System
  • High Definition LED Television w/Swingarm (Living Area)
  • 50 AMP Electrical Service
  • Wired and Framed for 2nd A/C in Bedroom
  • Detachable Power Cord with LED Light
  • Maxx Air Fan w/Rain Sensor
  • Convection Microwave Oven
  • 15k BTU Ducted A/C

Peace of Mind Package (Mandatory)

  • Residential Cabinetry
  • Solid Surface Countertops
  • Aluminum "Tread Lite" Entry Steps
  • Metal Slam Baggage Doors with Magna Latch
  • 8 Cu.Ft. Double Door Refrigerator w/ Ext. Thermostat Control
  • 17.8 Gal./Hr. Quick Recovery Water Heater
  • Porcelain Toilet with Foot Pedal Flush
  • Residential Single Lever Faucet with Pullout Sprayer
  • Solid Surface Sink Covers
  • Universal All-In-One Docking Station
  • Black Tank Flush
  • Residential Fireplace
  • Heated Wall Hugger Theatre Seats w/ LED Lights (Most Models)
  • Residential Booth Dinette
  • LP Quick Connect
  • Nev-R-Adjust Brakes

Arctic 4-Seasons Protection Package (Mandatory)

  • 35k BTU High Capacity Furnace
  • Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
  • Heated and Enclosed Underbelly w/Circulating Heat
  • Ducted Heat to Pass Thru Storage Area
  • Heated and Enclosed Dump Valves
  • EZ Winterization Valve in Utility Center
  • Insulated Slide-out Floors
  • Attic Vent
  • Double Insulated Roof and Front Cap
  • Zero Degree Extended Season Enjoyment

Options

  • Free Standing Table w/Storage Drawer and 4 Chairs (2 folding) (NA 28BH, 285BHTS))
  • 2” Receiver Hitch (Mandatory)
  • Dual Pane Windows
  • 12 cu. ft. Refrigerator (Forced/Mandatory on FW only; on TT 312BHTS, 315RLTS only) (NA 29RS)
  • Tri-Fold Sofa IPO Theatre Seating (Forced on 28BH) (312BHTS)
  • King Bed (320MKS, 337RLS, 367BHS) (315RLTS)
  • 2nd A/C Low Profile 13.5k BTU Ducted (FW)
  • 2nd A/C 15k BTU Ducted (TT)
  • 78" Theatre Seating IPO Booth Dinette (28BH)
  • 2nd Awning (NA 28BH and 29RS) (Forced/Mandatory - FW; Forced - 315BHTS; Optional TTs)
  • 78" Theatre Seating IPO U-Shaped Dinette (285BHTS)



Please see us for a complete list of features and available options!



All standard features and specifications are subject to change.

Manu-Facts:

Thank you for taking the time to look at Grand Design RV.  We would like to share some insights into what sets Grand Design RV Company apart from all other RV manufacturers and why this difference is important to you.   We were part of the original ownership team that led a top RV Manufacturer to become the largest travel trailer and fifth wheel company in the world.  While proud of our accomplishments at this company,  it became difficult to stay in touch with the needs of our customers, employees and ultimately the products we built.  In 2011, we set out to pursue our dream and re-establish the personal connection we had enjoyed with customers and dealers.  The result is Grand Design RV Company.  Starting with a blank canvas, we were able to do things differently than what had been done before.

After achieving unparalleled years of growth, Grand Design formed an alliance with one of the industry's most iconic brands...Winnebago. Operating as an independent business within Winnebago Industries provides additional financial stability and enables us to continue Grand Design's unique way of doing business for our current and future customers.

LONG TERM VALUE Everything we do at our company is designed to build long term value in what we offer our customers, “more features and superior value for your dollar.”

CUSTOMER FOCUS Our focus (from the very first day we opened our doors) revolves around our customers.

STAYING CONNECTED Magic happens when the President and Senior Management are all actively working in the production facilities to help build the team and develop products.

EXPERIENCED WORKFORCE Our local workforce has been hand-picked, and has an excellent reputation for quality craftsmanship that is second to none.

CLASS LEADING WARRANTY  We back every one of our coaches by a 3-year limited structural warranty.

RAISING THE QUALITY BAR   We put every Grand Design unit through a series of quality inspection gates during the manufacturing process.  Once completed, the unit undergoes a comprehensive final finish inspection.  From here, most manufacturers ship their units on to the dealer for retail sale.  Not Grand Design...Every one of our units are shipped to a separate PDI (Pre-Delivery Inspection) location where they are again put through a 280+ point inspection process.  It is only after this that we deem a unit ready to ship to our dealers.

SUPERIOR SERVICE  We deliver the highest quality in the industry, but anything built by humans can be subject to issues.  It’s how those issues are addressed that stands out with Grand Design.  Don’t just take our word for it, visit the owners page on Facebook (Grand Design RV Owners) and see for yourself how we take care of our customers after the sale.  An informed customer will be a Grand Design customer!

At Grand Design our goal is simple...Continue leading the industry with quality products while improving the customer's RV experience before, during, and after the sale.
