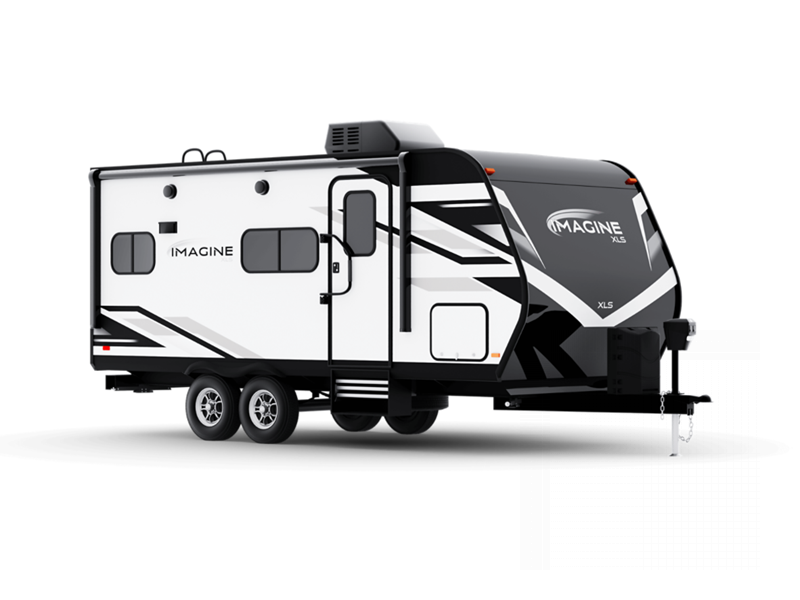

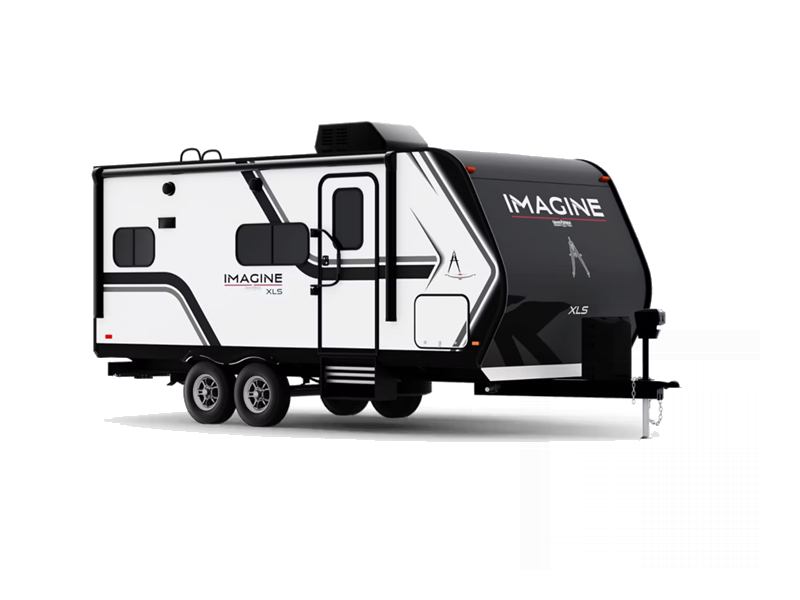

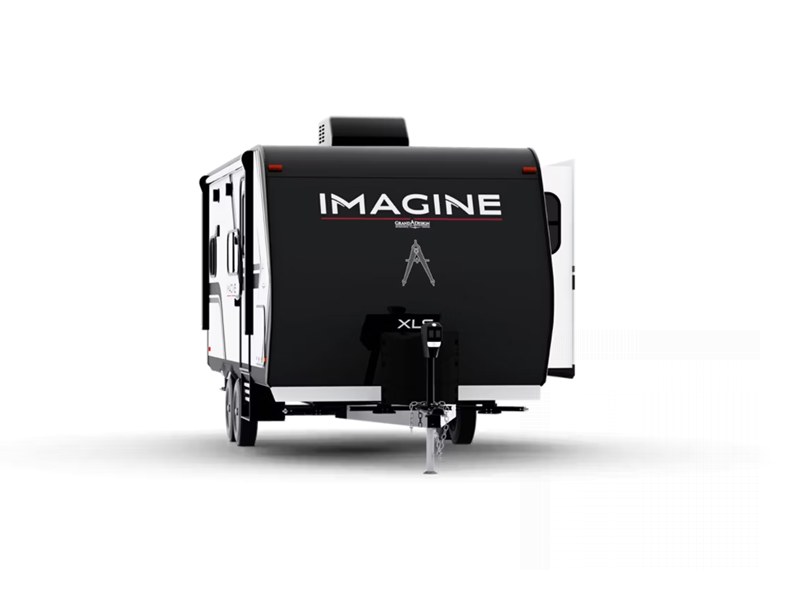

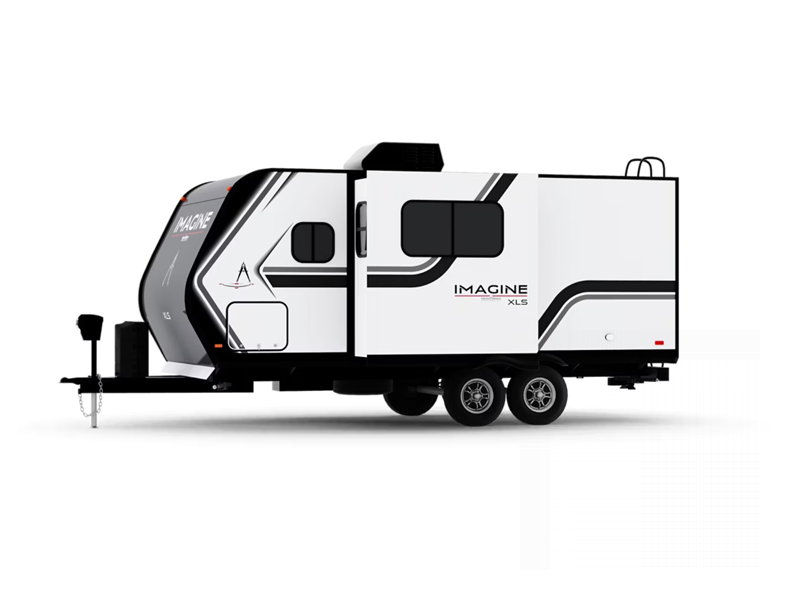

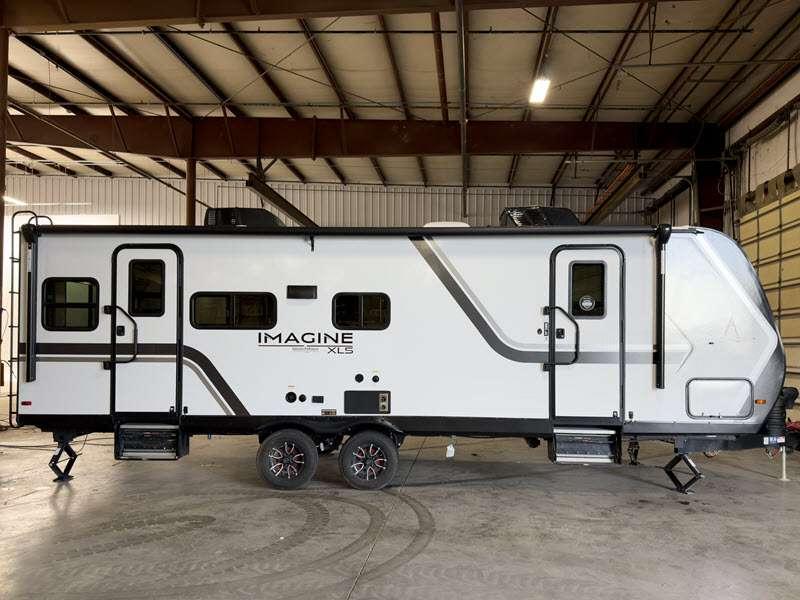

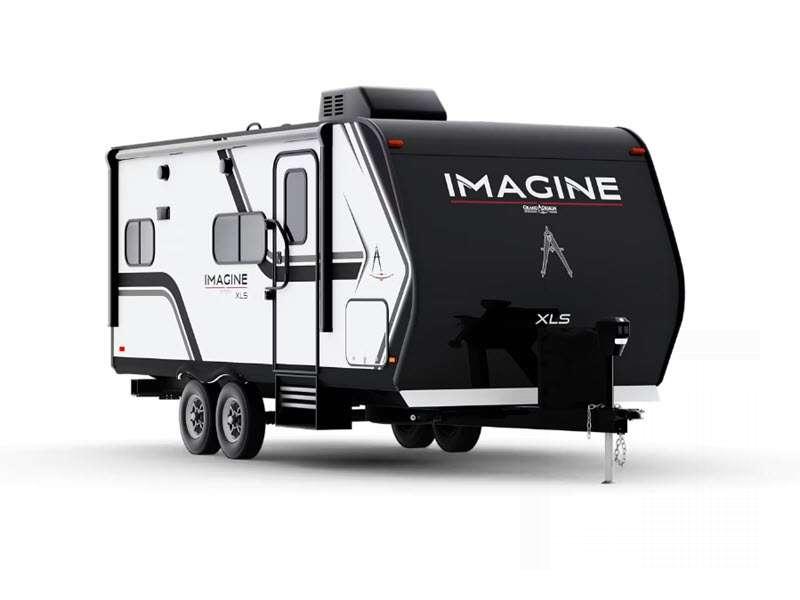

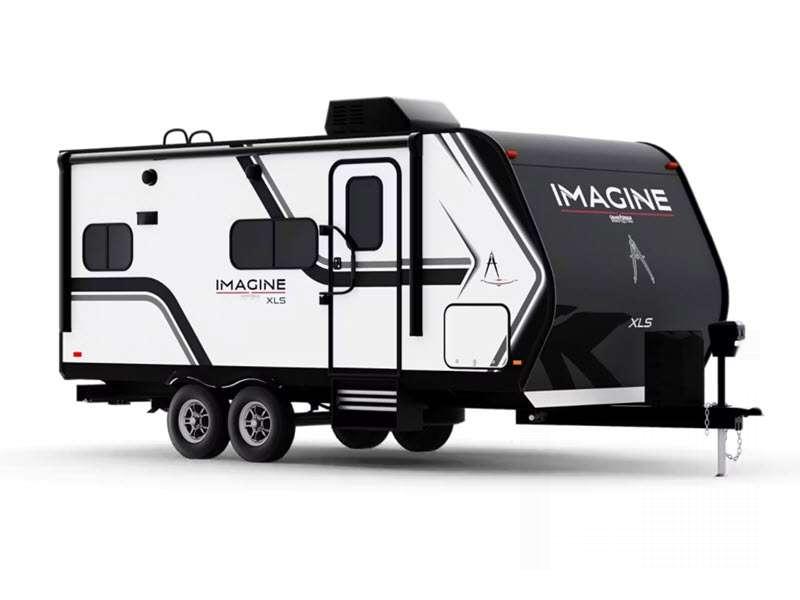

The Imagine XLS travel trailers by Grand Design may be light on weight, but they're heavy on features! Since these trailers can be towed by more medium-duty trucks and SUVs, you might not have to purchase a new tow vehicle when choosing an Imagine XLS!

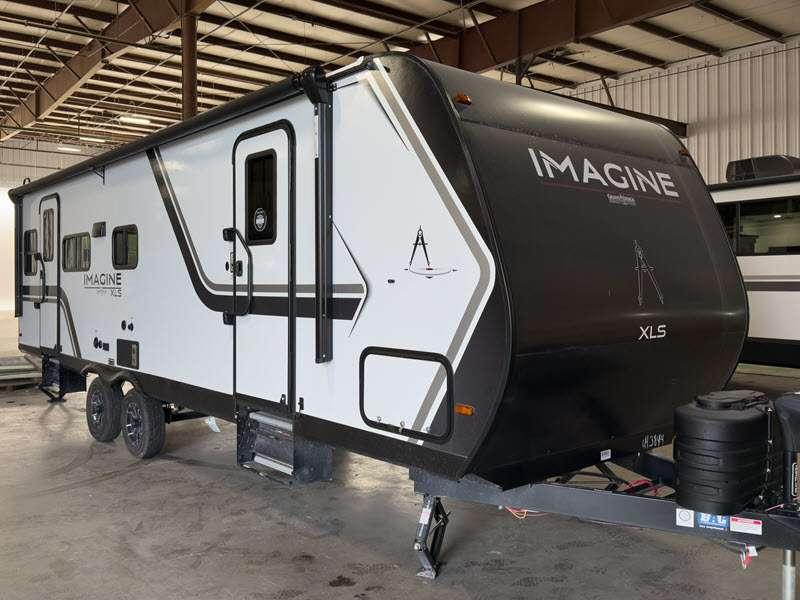

The gel-coated fiberglass exterior and one-piece roof membrane form the base that holds all of the many features, like the three-burner range with an oven, residential walk-in shower, high capacity furnace, and LED HDTV. The friction-hinge entry door won't fly away when you open it, and the residential countertops will let you set down dinner plates. There is a large panoramic window and LED lighting to keep your trailer feeling open, and the four packages included will provide even more features you won't want to camp without. Some of these features include a 180W solar panel, a 2" accessory hitch, and a full width pass-thru storage!



For an RV that performs beautifully and outlasts the competition, choose the Grand Design Imagine XLS travel trailer!

  • Specifications

    Sleeps 3
    Slides 1
    Length 21 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Int Height 6 ft 6 in
    Hitch Weight 480 lbs
    GVWR 6395 lbs
    Dry Weight 4674 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Available Beds Murphy Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 14' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 7
    Length 24 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Int Height 6 ft 6 in
    Hitch Weight 456 lbs
    GVWR 6395 lbs
    Dry Weight 4698 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Murphy Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 15' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine XLS 22BHE

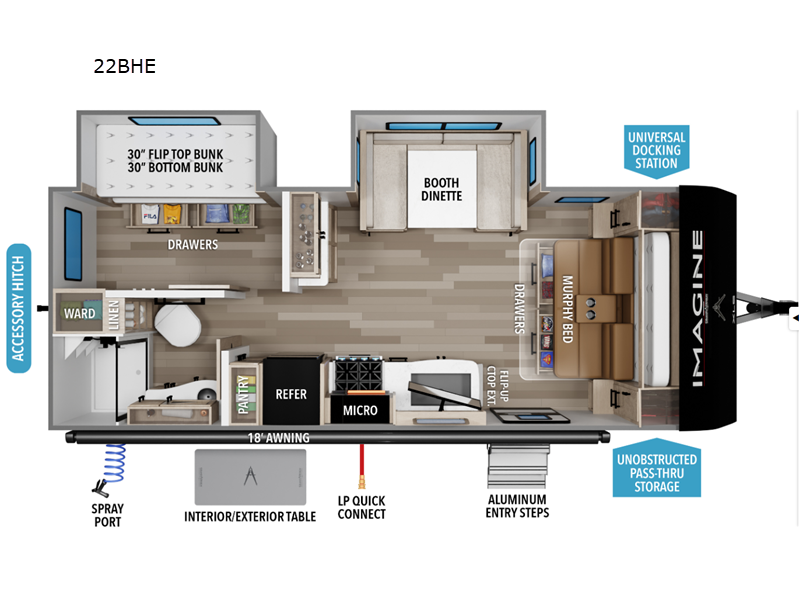

    Imagine XLS 22BHE Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine XLS travel trailer 22BHE highlights: 30" Bunks in Slide ... more about Imagine XLS 22BHE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 25 ft 4 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Int Height 6 ft 6 in
    Hitch Weight 543 lbs
    GVWR 6995 lbs
    Dry Weight 5589 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 18' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine XLS 22MLE

    Imagine XLS 22MLE Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine XLS travel trailer 22MLE highlights: Queen Bed Theatre ... more about Imagine XLS 22MLE

    Specifications

    Sleeps 3
    Slides 1
    Length 26 ft 1 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Int Height 6 ft 6 in
    Hitch Weight 490 lbs
    GVWR 6995 lbs
    Dry Weight 5176 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 18' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine XLS 22RBE

    Imagine XLS 22RBE Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine XLS travel trailer 22RBE highlights: Private Bedroom Rear ... more about Imagine XLS 22RBE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Int Height 6 ft 6 in
    Hitch Weight 497 lbs
    GVWR 6995 lbs
    Dry Weight 5125 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 82 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 18' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine XLS 23LDE

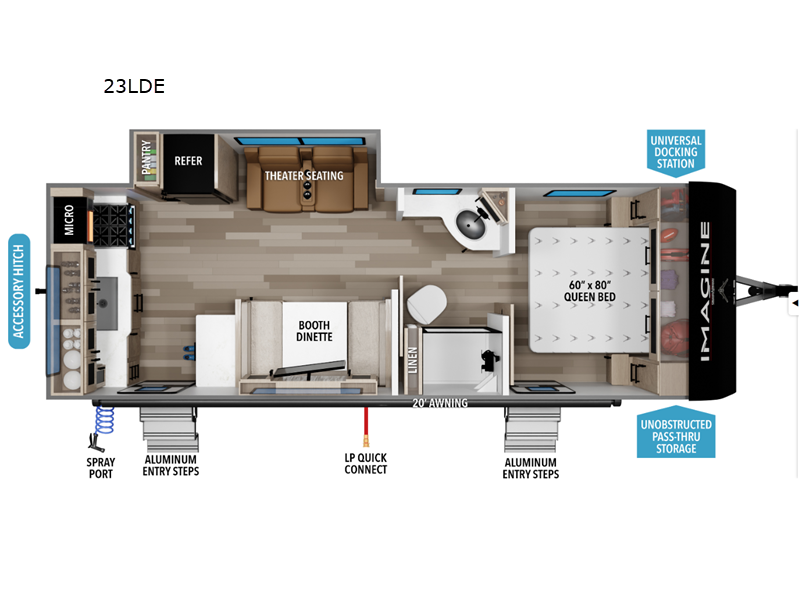

    Imagine XLS 23LDE Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine XLS travel trailer 23LDE highlights: Private Bedroom Dual ... more about Imagine XLS 23LDE

    Specifications

    Sleeps 3
    Slides 1
    Length 28 ft 5 in
    Ext Width 10 ft 10 in
    Ext Height 8 ft
    Int Height 6 ft 8 in
    Hitch Weight 524 lbs
    GVWR 6995 lbs
    Dry Weight 5597 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 82 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 20' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine XLS 24BSE

    Imagine XLS 24BSE Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine XLS travel trailer 24BSE highlights: Private Bedroom Dual ... more about Imagine XLS 24BSE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 2
    Length 28 ft 8 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Hitch Weight 598 lbs
    GVWR 6995 lbs
    Dry Weight 5923 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 82 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 20' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine XLS 24SDE

    Imagine XLS 24SDE Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine XLS travel trailer 24SDE highlights: Private Bedroom Dual ... more about Imagine XLS 24SDE

    Specifications

    Sleeps 6
    Slides 2
    Length 28 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Int Height 6 ft 6 in
    Hitch Weight 602 lbs
    GVWR 6995 lbs
    Dry Weight 5889 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 82 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Shower Size 27" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR 32" LED HDTV
    Awning Info 20' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

  • Imagine XLS 25DBE

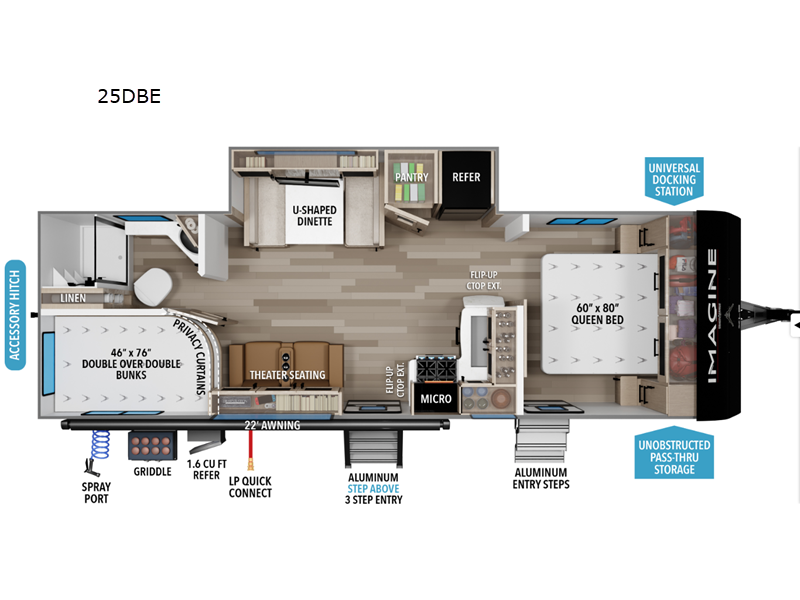

    Imagine XLS 25DBE Floorplan Image

    Take a Virtual Tour

    Grand Design Imagine XLS travel trailer 25DBE highlights: Double-Size Bunks ... more about Imagine XLS 25DBE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 1
    Length 29 ft 9 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Int Height 6 ft 6 in
    Hitch Weight 631 lbs
    GVWR 7395 lbs
    Dry Weight 6198 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 82 gals
    Black Water Capacity 37 gals
    Tire Size ST205/75R14LRD
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type On Demand Tankless
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 22' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Walk-In Shower
    Electrical Service 30 amp

    Similar Floorplans

Imagine XLS Features:

Standard Features



Exterior

  • 80% Tint Radius Safety Glass Windows
  • 20# LP Bottles (2) w/Level Gauges
  • 28" Radius Entry Door
  • Extra Large 2” Fresh Water Drain Valve
  • Adjustable Power Awning w/ LED Lights
  • Power Tongue Jack
  • Aluminum Entry Steps
  • Spare Tire & Carrier
  • 6' Coiled Break Away Cable
  • Front Rock Guard

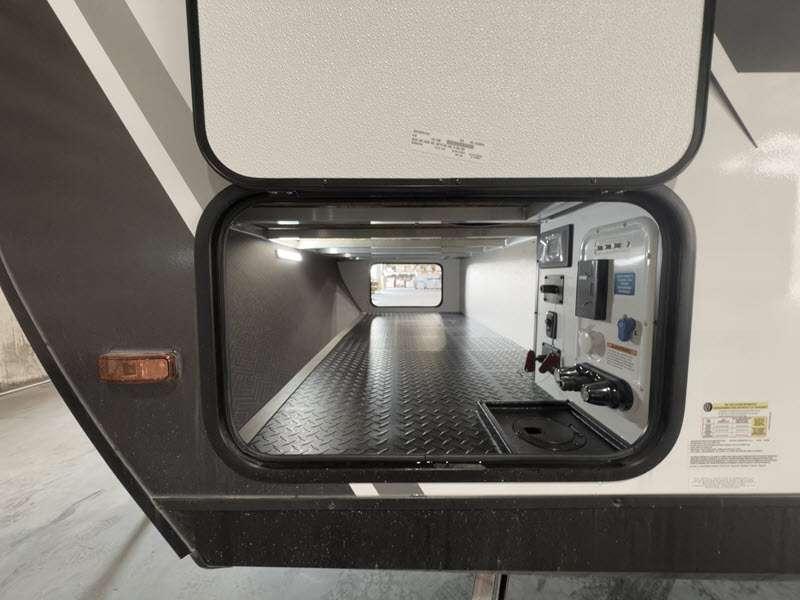

  • Tuff-Ply Pass Thru Flooring
  • Sewer Hose Carrier

Construction

  • Gel Coated Fiberglass Exterior
  • One-Piece Roof Membrane with Limited Lifetime Warranty
  • Easy Access Low Point Drain Valves
  • Friction Hinge Entry Door
  • Magnetic Storage Door Catches
  • Laminated Aluminum Framed Rear Wall (R-7)
  • Laminated Aluminum Framed Side Walls (R-7)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
  • Laminated Aluminum Framed Main Floor (R-30)
  • 5" Radius Wood Framed Roof (R-40)

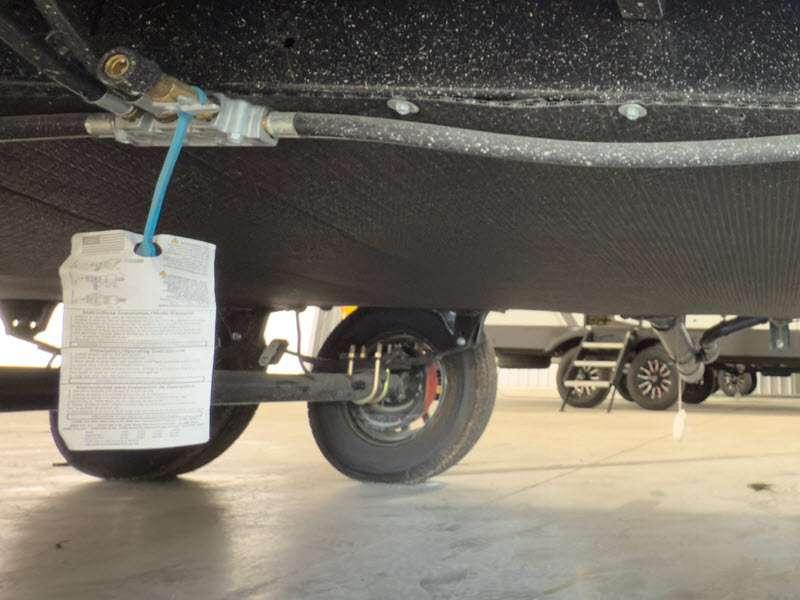

  • Heated & Enclosed Underbelly w/ Suspended Tanks
  • Double Insulated Roof & Front Wall
  • Heated & Enclosed Dump Valves
  • High Density Roof Insulation w/ Attic Vent
  • Moisture Barrier Floor Enclosure

Running Gear

  • Tire Linc TPMS Prep
  • Aluminum Rims
  • ABS

Frame & Chassis

  • 2" Accessory Hitch Receiver

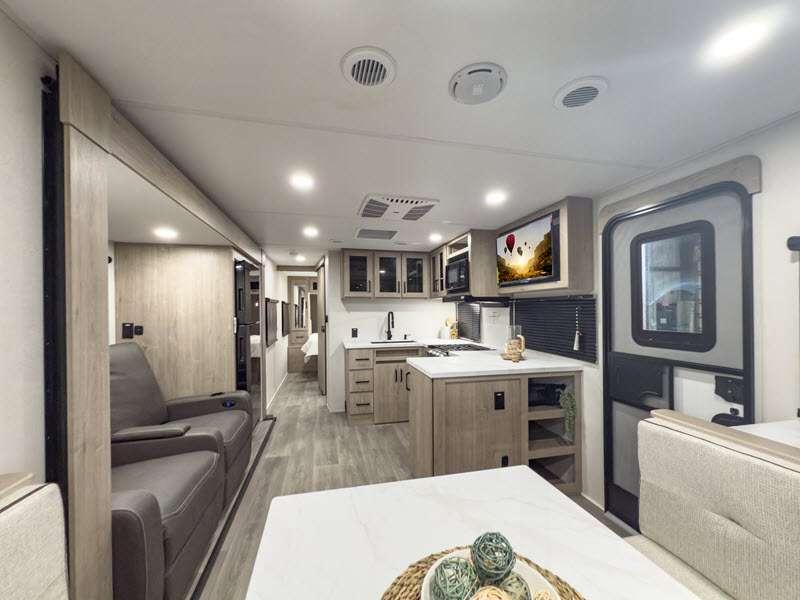

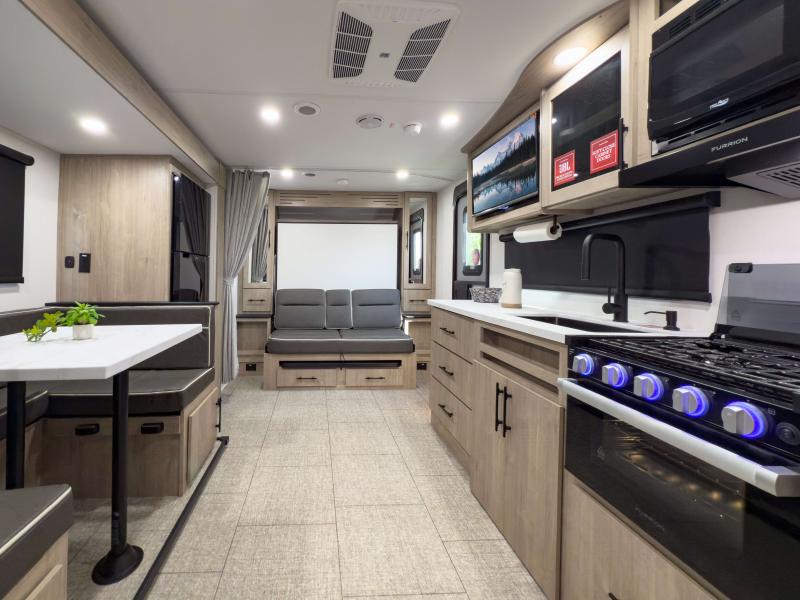

Interior

  • Solid Drawer Fronts
  • Glass Cabinet Door Inserts (Select Overhead Cabinets)
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Face Frames
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Window

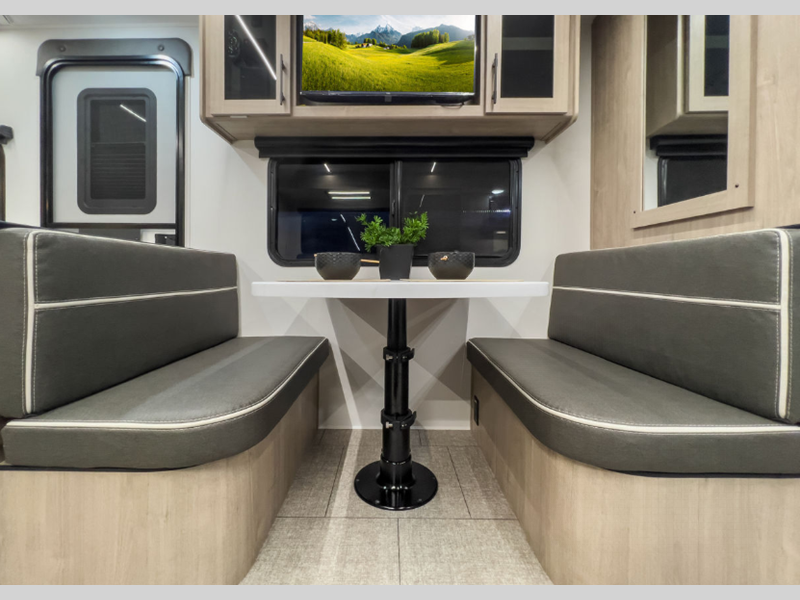

  • Telescoping Dinette Table
  • LED Interior Lighting
  • Wireless Pop-Up Charger w/ 2 USB Outlets

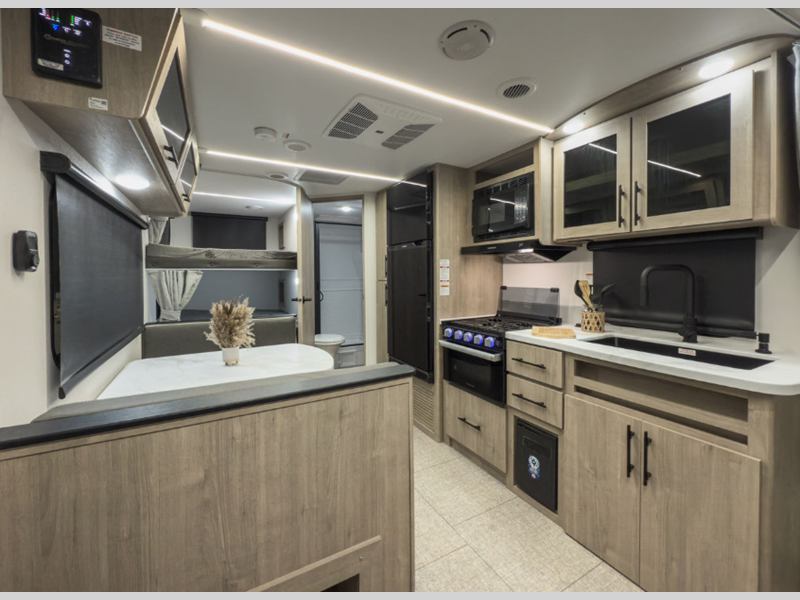

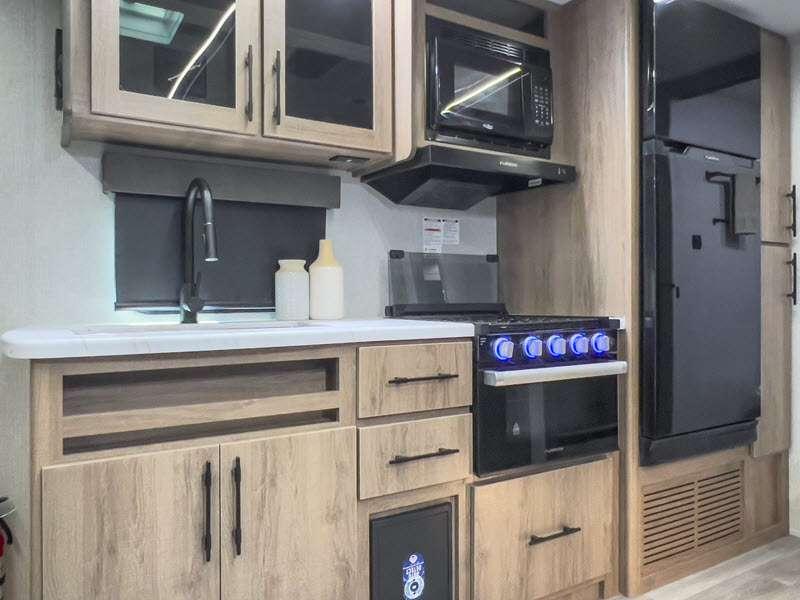

Kitchen

  • Sink Cover
  • Residential Countertops
  • Deep Seated Stainless Steel Sink
  • Residential Pulldown Sprayer Faucet

Electrical

  • Battery Kill Switch (Pass Thru)
  • Monitor Panel w/ One Touch Compass Connect
  • 180W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 40 Amp Charge Controller
  • 30 Amp Service
  • Detachable Power Cord
  • Motion Sensor LED Entry Lighting

HVAC

  • High Capacity Furnace
  • Designated Heat to Subfloor
  • Residential (Ductless) Heating System Throughout
  • Ducted Main A/C

Plumbing

  • High-Capacity Water Pump
  • Oversized Tank Capacities

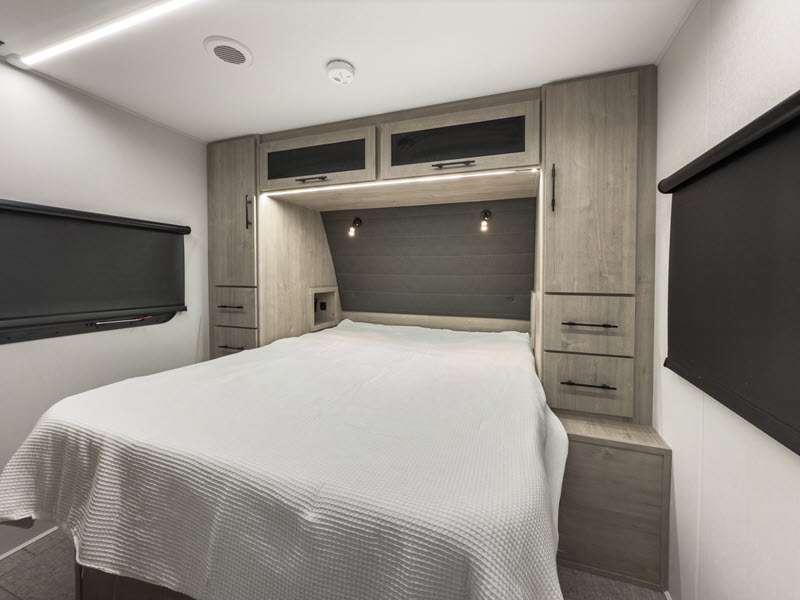

Bedroom

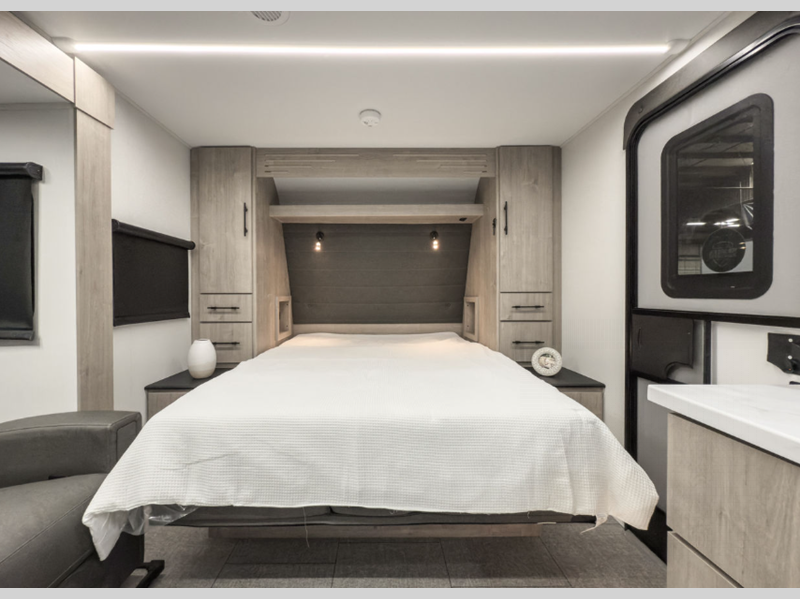

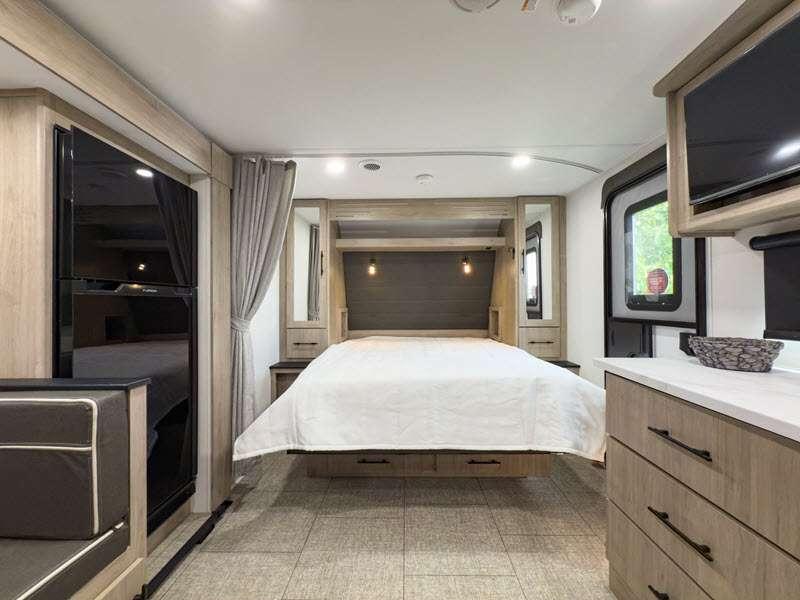

  • Queen Murphy Bed w/ Storage Drawers (17MKE, 22BHE)
  • Residential Bedspread
  • Master Suite with Queen Bed (22MLE, 22RBE, 23LDE, 24BSE, 24SDE, 25DBE)
  • Built-in Wardrobe Cubby Storage w/USB-C Charging Station and 110V Outlet

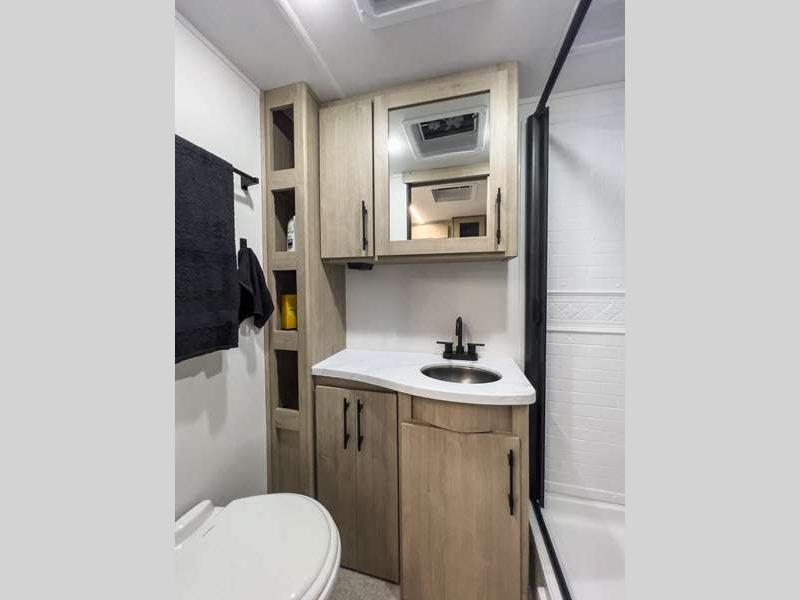

Bathroom

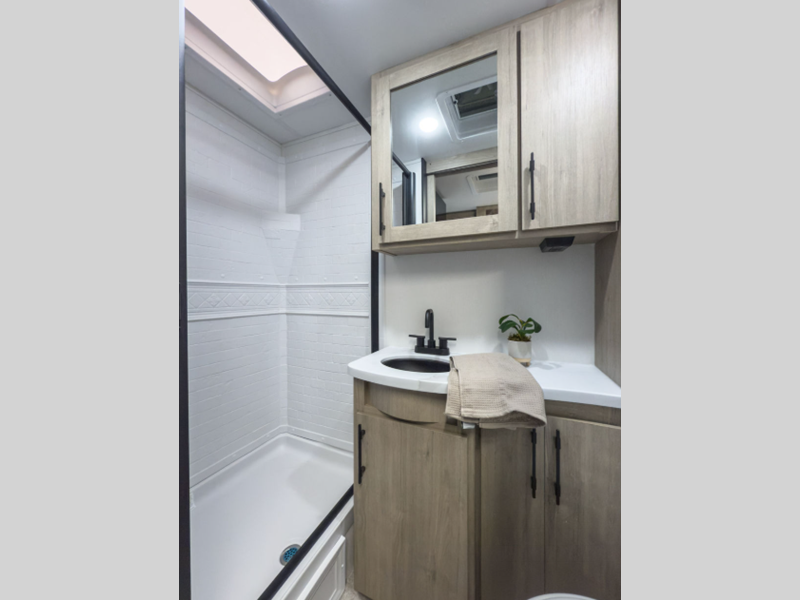

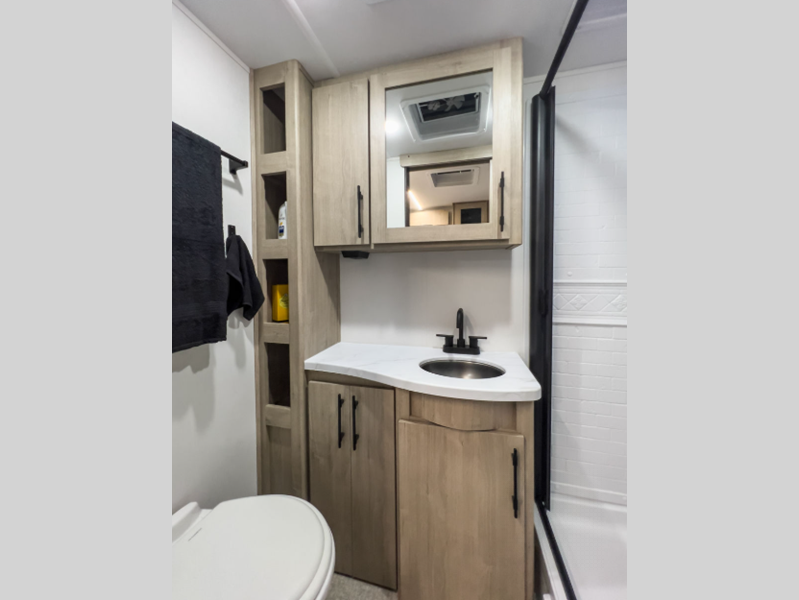

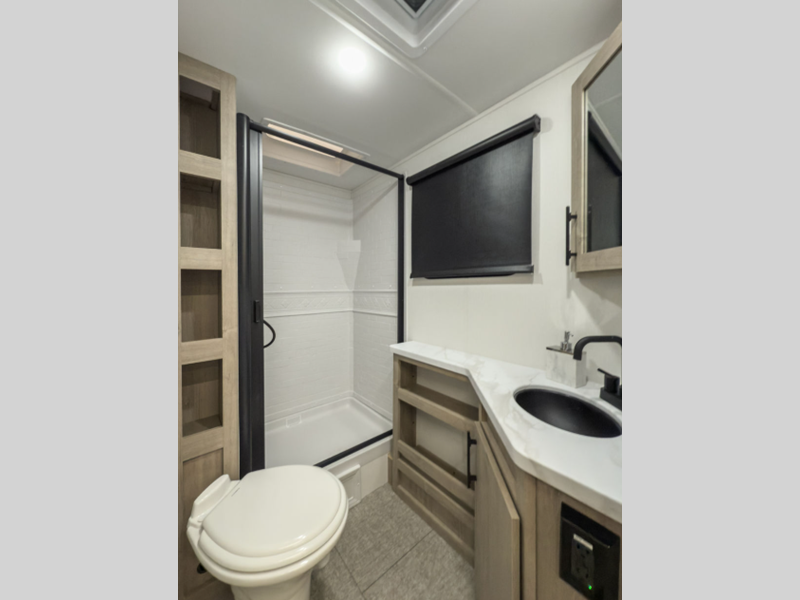

  • Residential Walk-In Shower
  • Skylight Over Shower
  • Power Vent Fan
  • Medicine Cabinet with Mirror

Appliance

  • Microwave
  • 3-Burner Range with Oven
  • 12V 10 Cu. Ft. Refrigerator

Electronics

  • Backup Camera Prep
  • TV and Cable Prep
  • High Definition LED TV
  • Exterior Cable Hookup

Peace of Mind Package (Mandatory)

  • Aluminum Entry Steps
  • Deep Seated Stainless Steel Sink
  • Residential Pull-Down Sprayer Faucet
  • Residential Cabinetry
  • Universal Docking Station
  • On Demand Tankless Water Heater
  • Black Tank Flush
  • Aluminum Rims
  • Spare Tire and Carrier
  • Front Rock Guard
  • Premium Window Treatments
  • 6' Coiled Break Away Cable
  • 2" Accessory Hitch
  • Sewer Hose Carrier
  • Tuff-Ply Pass Through Flooring
  • Dual LLP Tank Monitors

Ultimate Power Package (Mandatory)

  • Adjustable Power Awning w/ LED Lights
  • LED Interior Lighting
  • 30 AMP Service
  • High Definition LED Television
  • LED Motion Sensor Entry Lighting
  • Detachable Power Cord
  • Ducted Main AC
  • Power Tongue Jack
  • Compass Connect
  • Tire Linc TPMS Prep
  • Exterior Cable Hookup
  • Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
  • Wireless Pop-Up Charger w/Dual USB Ports

Four-Season Protection Package (Mandatory)

  • High Capacity Furnace
  • Heated and Enclosed Underbelly with Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure
  • Residential Heating System Throughout (Ductless)
  • Double Insulated Roof and Front Cap (R-40)
  • Heated and Enclosed Dump Valves

XLS Solar Package (Mandatory)

  • 180W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • 40 Amp Charge Controller
  • 12V 10 CU. FT. Refrigerator

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Grand Design Logo
In 2012, we started with a blank canvas to pursue that better way, a different way, than what had been done before. A company whose culture requires a long-term, personal connection with our customers, employees, and dealers – that company is Grand Design RV. Our business model of doing the right thing has led us to unparalleled years of growth.

Our local workforce has been hand-picked and has an excellent reputation for second-to-none industry craftsmanship, and our CEO and Senior Management actively work with the production facilities to help build the team and develop products.

At Grand Design we've raised the quality bar by putting every unit through a series of quality inspection gates during the manufacturing process. Once completed, the unit undergoes a comprehensive “final finish” inspection. Every one of our coaches is shipped to a PDI (Pre-Delivery Inspection) area where they are put through a rigorous 300+ point inspection checklist before being shipped to our dealers.  And, we back every one of our coaches with a 3-year limited structural warranty.

At Grand Design our goal is simple – continue leading the industry with quality products while improving the customer’s RV experience before, during and after the sale. We strive for nothing less than customers for life and we would be honored to personally welcome you to the Grand Design RV family!
